NDT Equipment L800 Concrete Thickness Measuring Instrument Gauge Concrete Floor Slab Thickness Gauge

Product Description

Product Description
Product Description

Product Model	L800
Thickness test range	20~850mm
Test accuracy	20~350mm: ±1mm    351~600: ±2mm     601~850mm: ±4mm
Data storage capacity	950 components*1000 measuring points
Data transmission mode	Wireless cloud transport(options)
Host parameters	Screen size: 2.8 inch LCD   Resolution: 240*320mmVolume: 220*93*110mm  Weight: 0.6kg
Power supply	Both host and transmitter probes are built-in lithium batteries
Working environment requirements	Temjperature: -10℃~40℃      Humidity: ＜90% RH
		Non-strong alternating electromagnetic filed
		No long direct sunshine

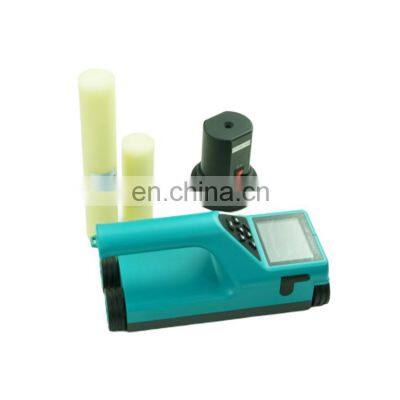

L800 Integrated floor thickness gauge is a portable and non-destructive testing instrument for measuring the thickness of concrete or other non-ferromagnetic media. When used, the transmitter and receiver probes are placed on the two relative testing surfaces of the concrete, respectively, to transmit and receive electromagnetic signals, and the instrument is connected according to the connection. The received signal strength is used to measure the concrete thickness.
1.Host integrated design, simple operation, easy to carry. Upgraded wireless cloud transmission function;2.Real-time positioning function, arrow direction indicating the position of the emitter probe, the testing process is simple;3.The thickness measurement range is wide and the accuracy is high.Stored components can continue to be detected.4.TF card storage makes storage and transmission more convenient and fast.5.Instrument calibration can correct the deviation caused by temperature or environment.6.Special computer software for data analysis can quickly generate test reports
Company Profile
Cangzhou Lovely Group Co.,Ltd. is a professional manufacturer specializing in Testing Equipment which service for construction, railway, highway, water conservancy, electric powder etc. We have factories in Beijing and Hebei. It covers about 3000square meters, contains development department, laboratory for equipment. There has more than 20 technicians and 30 varieties of testing equipment.
Factory Workshop
Hot Sales
Certifications
Customer Photos
Packing and Shipping
FAQ
Q1:Are you a factory or trading company?A:We are a factory specializing in manufacturinf all kinds of tester. Q2:Where is the loading port?A:Qingdao port or tianjin port.
Q3:What’s the MOQ of the product?A:Different item has different MOQ.normally one stand is preferred.
Q4:What certificates do you have?A:We have ISO 9001.
Q5:Do you have an OEM service?A:Yes.We can provide OEM and ODM services as your requirements.
Q6:How long is the production cycle after ordering?A:General it is about 7-20 days.
Q7:What is the payment method?A:T/T payment is preferred and other payment terms is accepted.
