Big Diameter Single Drum Carbon and Allotype Steel Inverted Vertical Wire Drawing Machine

Product Description

1. About us
Wuxi Wandeshun Machine Co., Ltd. one of the leading wire drawing machine manufacturers in China , is specialized in manufacturing wire drawing machines , which was established in 2000.
Our products are popular in many provinces of china and have already been exported to Vietnam , Indonesia, Uzbekistan Kenya, South Africa,Algeria,Egypt, Iran, Turkey,Bolivia,Saudi Arabia and so on
Excellent geographic location and easy transportation access, only 2k meter from Wuxi airport and adjacent to national highway 312.Welcome friends of all industries to visit and instruct our factory.

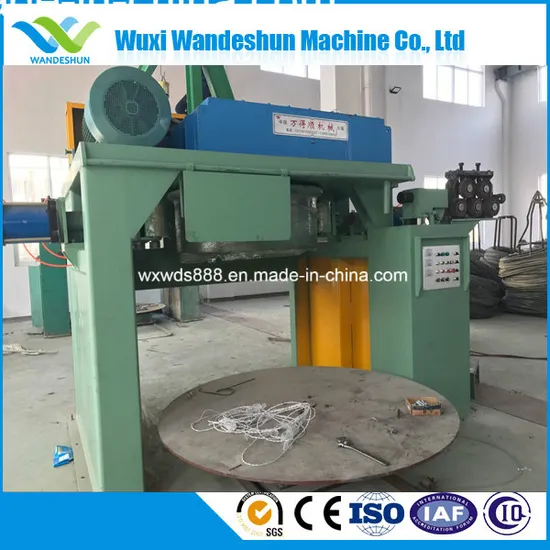

Big Diameter Single Drum Carbon and allotype Steel Inverted Vertical Wire Drawing Machine
Structure Overview
All the Inverted vertical wire drawing machines improved via our company are designed with breaking the traditional concept.It won't feel shake when you touch the body of running machine.It is difficult for many other same industry manufacturing enterprises to do it and it is one of biggest industry highlights.
This machine has multifarious models which can draw high,medium and mild carbon steel wires rod and non-ferrous metal wires with the diameter below Φ38mm. Discharging the wires with a big weight of call.The machine mainly applies to standard parts cold heading,automobile and motorcycle,industry material,standard high carbon steel wires and cables, etc.
Frequency control,drawing smoothly,high automation level,one person can operate several machines at the same time.
Features of the machine:The driving system use a combination of first grade strong narrow V-belt with a hardened reducer or a swing ring reducer,big take-up weight of coll,capstan coerces air cooling;pneumatic pinch rollers;off line plate autonomous power and ring's diameter adjustable;AC variable adjust speed , easy to operate,safe ,reliable and energy saving 10%-30%.
Host: The take-up reel installed on the top of the rack is rotated by the AC motor through the gear reducer, and the AC motor speed is controlled by the AC drive to achieve stepless speed regulation.
Take-up trolley: The take-up trolley is equipped with a drop device, and the bottom rails allow the trolley to enter and exit.
Electric control system: It is composed of AC frequency converter, contactor and operation panel. This system uses AC frequency converters to control asynchronous motors. The inverter changes the frequency of the input power of the three-phase AC motor, which enables the AC motor to realize stepless speed regulation. Its speed regulation features are good, the scope is wide, the protection function is all, the volume is small, the weight is light, the structure is simple, and the installation and maintenance are convenient.
Pneumatic system: consists of cylinders, solenoid valves, gas source triplets, etc. This system is controlled by the solenoid valve to control the wire on the reel and press it smoothly.
Device parameters

model	LDD-1400	LDD-1200	LDD-1000	LDD-800	LDD-600
Finished product diameter	1400mm	1200mm	1000mm	800mm	600mm
Maximum line	40mm	30-25mm	20-16mm	16-8mm	12-6.5mm
Drawing speed	28m/min	0-48m/min	0-60m/min	0-80m/min	0-120m/min
Average compression rate	28-10%	20-20%	25-10%	30-25%	30%
Motor Power	110kw	75-55kw	55-45kw	45-37kw	22-15kg
Line weight	2300kg	2300kg	2300kg	1100kg	800kg
