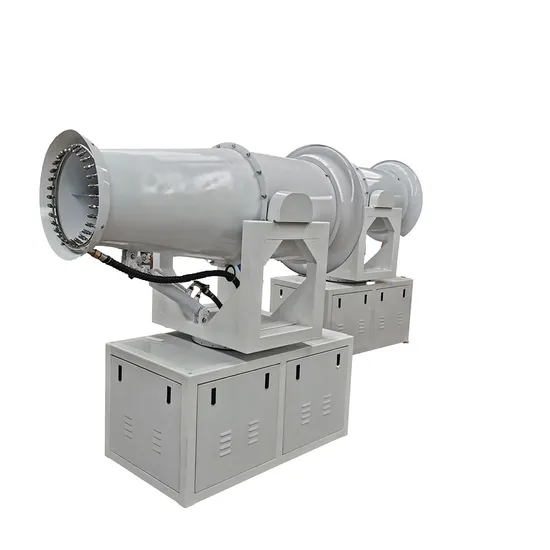

Aligning Sprayer Dust Suppression Vehicle Mounted Fire Water Fog Cannon

Product Description

Product Description
Introduction Of Agricultural Equipment Made In China Mobile Fog Cannon First Class Quality
1. Explosion-proof sprayer air duct, impeller, collector, spray cylinder, guide vane, the overall design is excellent. Under the same range, the fan power is small, the overall size of the air duct is short, energy saving and consumption reduction, and the performance is stable. High function conversion efficiency, long range, wide coverage, fine and uniform water mist.
2. The control mode of fog gun machine is flexible, which can be divided into local manual control, wireless remote control, PLC remote control, etc. Up, down, left and right steering is divided into: left and right 0-320 ° automatic steering device, up and down - 5-45 ° pitch angle hydraulic adjustment system, which is fast, safe, reliable, flexible and convenient to start.
3. Installation mode: it is divided into fixed type, tower type, lifting type, traction mobile type and vehicle mounted type.
zmwm21 Product Parameters
Parameters Of Agricultural Equipment Made In China Mobile Fog Cannon First Class Quality

Fog machine model	30 Type	40 Type	50 High Type	50 General Type	60 High Type	60 General Type	80 High Type	100 High Type	120 High Type
Static wind range(m)	30m	40m	50m	50m	60m	60m	80m	100m	120m
Blower motor(kw)	3kw	7.5kw	11kw	11kw	18.5kw	18.5kw	37kw	55kw	75kw
Water pump motor(kw)	3kw	4kw	7.5kw	5.5kw	4kw	7.5kw	7.5kw	11kw	15kw
Pump Model	40 triplex plunger pump	80 triplex plunger pump	Vortex pump	120 triplex plunger pump	Stainless steel multistage pumps	150 triplex plunger pump	Stainless steel multistage pumps
Blower diameter	500mm	600mm	650mm	600mm	750mm	700mm	1000mm	1200mm	1400mm
Rings number	Single ring (stainless steels)		Double ring (stainless steels)
Nozzles number	12	32	50	36	60	38	80	100	120
Pump flow(t/h)	0.5t/h	1t/h	3t/h	2t/h	5t/h	2.5t/h	7t/h	10t/h	15t/h
Horizontal rotation angle	Adjustable 360° round trip
Up-down pitch angle	-0.5°to +45°
Motor starting method	Direct start						Soft start
Noise reduction technology	Around 100db within 5m
Power supply	380V
Dimensions (L x W x H)	1300x1000x 1600mm	1700x1000x 1700mm	1700x850x 1700mm	1800x1300x 1900mm	1800x1000x 1900mm	1800x1000x 1900mm	2450x1400x 2500mm	2900x2000x 2600mm	2900x2000x 2700mm
Overall weight	180kg	240kg	500kg	400kg	800kg	800kg	1300kg	2200kg	2600kg

Fog machine model	30 Type	40 Type	50 High Type	50 General Type	60 High Type	60 General Type	80 High Type	100 High Type	120 High Type
Static wind range(m)	30m	40m	50m	50m	60m	60m	80m	100m	120m
Blower motor(kw)	3kw	7.5kw	11kw	11kw	18.5kw	18.5kw	37kw	55kw	75kw
Water pump motor(kw)	3kw	4kw	7.5kw	5.5kw	4kw	7.5kw	7.5kw	11kw	15kw
Pump Model	40 triplex plunger pump	80 triplex plunger pump	Vortex pump	120 triplex plunger pump	Stainless steel multistage pumps	150 triplex plunger pump	Stainless steel multistage pumps
Blower diameter	500mm	600mm	650mm	600mm	750mm	700mm	1000mm	1200mm	1400mm
Rings number	Single ring (stainless steels)		Double ring (stainless steels)
Nozzles number	12	32	50	36	60	38	80	100	120
Pump flow(t/h)	0.5t/h	1t/h	3t/h	2t/h	5t/h	2.5t/h	7t/h	10t/h	15t/h
Horizontal rotation angle	Adjustable 360° round trip
Up-down pitch angle	-0.5°to +45°
Motor starting method	Direct start						Soft start
Noise reduction technology	Around 100db within 5m
Power supply	380V
Dimensions (L x W x H)	1300x1000x 1600mm	1700x1000x 1700mm	1700x850x 1700mm	1800x1300x 1900mm	1800x1000x 1900mm	1800x1000x 1900mm	2450x1400x 2500mm	2900x2000x 2600mm	2900x2000x 2700mm
Overall weight	180kg	240kg	500kg	400kg	800kg	800kg	1300kg	2200kg	2600kg
