Monthly Deals Ss Flexible Metal Corrugated Hose/Bellow Hydraulic Hydro Forming Making Machine

Product Description

Monthly Deals Ss Flexible Metal Corrugated Hose/Bellow Hydraulic Hydro Forming Making Machine
Our Advantages
The Advantages of Our Metal Hose Forming Machine
The Comflex Industrial Co., Ltd. adopts PLC programmable control mode, and set the semi-automatic feeding, automatic feeding straight edge section and two high and low waves at both ends to automatically change the wave height program.
The Comflex Industrial Co., Ltd. introduces advanced foreign technology, self-designed steel belt automatic seam welding machine and various bulging method forming machines have become their own series, and with its advanced design concept, sophisticated process manufacturing level and comprehensive after-sales service, marketing 22 provinces and cities across the country and more than 10 countries and regions such as Russia, Ukraine, South Africa, Brazil, India, Iran, and Taiwan, are well received by users.
The Comflex Industrial Co., Ltd. has passed ISO9000 series certification. In the future, the company will continue to maintain the manufacturing status of welding and forming equipment, and will unswervingly promote technological progress and constantly improve its management to provide you with better products and services. Product Description

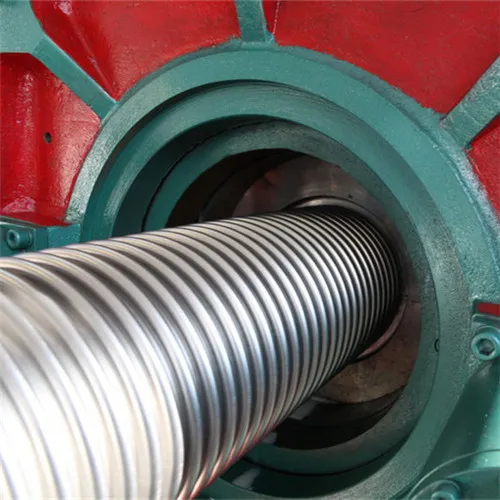

Hydraulic Metal Hose Forming Machine
Pitch Type: U Type
Hydraulic Metal Hose Forming Machine
YKCX-65D
ID range: Ф16―Ф55mm;
Thickness range: δ≤0.14×2―0.30×2mm;
Length range: L≤1000mm;
YKCX-150A
ID range: Φ32―Φ159mm
Thickness range: single layer 0.4―1.2mm
Double layer 0.25×2―0.8×2mm
Length range: L≤7000m
YKCX-300C
ID range: Φ50―Φ300mm
Thickness range: single layer 0.4―1.5mm
Double layer 0.25×2―1.0×2mm
Length range: L≤7000mm
YKCX-600A
ID range: Φ200―Φ630mm
Thickness range:single layer1.0―3.0mm
Double layer: 0.8×2―1.6×2mm
Length range: L≤2000mm YKCX-1200A
ID range: Φ700―Φ1220mm
Thickness range: single layer: 1.0―3.0mm
Double layer 0.8×2―1.6×2mm
Length range: L≤2000mm Related product
Tube welding machine
DN10-150 Tube welding machine
Wall thickness: 0.2-0.6mm
Tube diameter Ф10―Ф65mm
Control Inverter control
Welding speed About 250mtrs/hr
Tube length No limit
PU Metal Hose Forming Machine
Pitch Type:Ω Type
Our customer
Our service
Warranty period of one year
standard seaworthy package
Engineers available to service machinery oversea
FAQ
Q: Why choose us for the metal hose forming machine?
A: We are the most professional manufacturer of hose making machines with more than 25 years of experience
Q: What size can you make?
A: All the sizes from DN8 up to DN400 can be made on different machines
Q: How many different types of machines can you make?
A: Hydraulic metal hose forming machine
a:DN16-65mm b:DN25-DN100mm c:DN32-150mm d:DN50-300mm e:DN80-400mm
B: Mechanical hose making machine DN8-50mm
C: PU/ Elastomer Metal Hose Making Machine
a:DN12-100 b: DN50-150 c:DN12-65
Q: Can the hose forming machine be used for bellow making?
A: Yes, all the above hose forming machines can be used for bellow making as well
We need to know the following information to quote you the correct machinery:
1. Size range you want to make
2. The application of the hose you need, for instance, natural gas hose, water hose, air-conditional hose, industrial hose, etc..
3. Wall thickness Welcome to inquiry!
