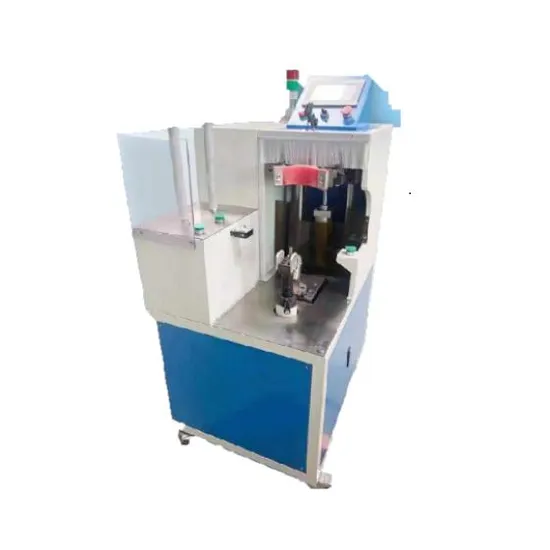

Intelligent Automatic Steaming Shoe Last Inserting Machine

Product Description

Automatic steam footwear vamp upper making sports shoe last inserting machine Product Description
Features:
Applied to all kinds of leather, PU material, lacquered leather and other materials. 1. Cross projection lamp can help get right position setting.
2. Shoe toe pressing stroke adopts adjustment free design to provide stable pressure.
3. Universal compacting device and specially designed scan cutter ensure all parts of shoe cover closely adhere to tree head after bonding, which lock more smooth and beautiful.
4. The pawl plate can be adjusted as per shoe size and adopts synchronous or independent type. Two pawls have independent adjusting mechanism, which is fast and accurate and fit for different kinds of pincers. The space between pawls is minimum and has no corner.
5. Pressure, position and speed between different mechanism can all be adjusted externally, which is convenient and accurate.
6. Specially designed internal and external propping adjusts front and rear mechanism, which can quickly adjust. Product Parameters

Product model	DS-302
Product name	Steam Holding Lasting Machine
Voltage	220V/50HZ
Power	4.8kw
Machine Dimensions	660*880*1430mm
Packing Dimensions	760*980*1530mm
N.W	150KG
G.W	200KG
Productivity	800-1000pairs/hour
Application	footwear production/shoe making
Air power	4kgs/cm2

Detailed Photos
