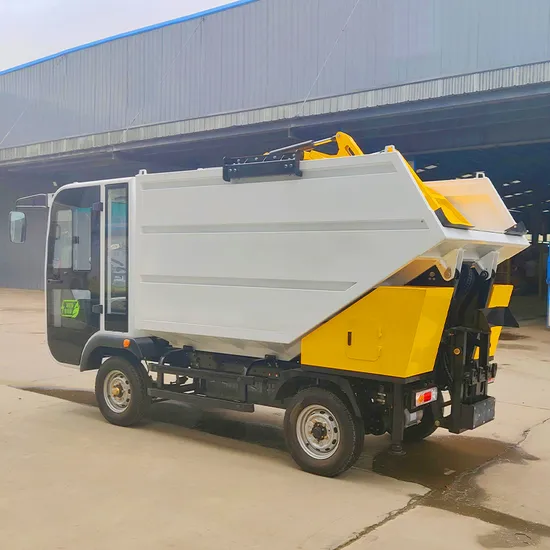

10 Cbm Four Wheels Electric Garbage Transport Truck Cleaning Truck

Product Description

10 cbm Four Wheels Electric Garbage Transport Truck Cleaning Truck
The garbage truck is capable of automatic loading and unloading special garbage collection boxes, suitable for factories, squares, schools, communities, villages, and towns in various places of garbage collection and removal. It has many advantages such as:
1. Great stability
2. Low failure rate
3. Easy to repair
4. Low energy costsProduct Parameters

Model	Q55	Curb weight	1850kg
Dimensions	4200*1480*2100mm	Walking speed	≥28Km/h
Car size	2780*1480*1350mm	Recharge mileage	≤60Km
Box volume	5.5m³	Car lift time	≤50s
Front track	1250mm	Rated load	1600Kg
Rear track	1250mm	Minimum turning radius	5000mm
Wheelbase	2100mm(±10)	Maximum grade	≤15°
Ground clearance	190mm	Turnover time	≤20s
Electronic control	72V400A AC Controller / Optional	Motor	72V7500W AC motor / Optional
Frame	Riveted frame	Tire	175-70-13 (Chaoyang)
Battery	72V150Ah lead-acid maintenance-free battery / Optional
Charger	Smart charger (The battery model determines the charger model)
Charging time	8-10 hours Temperature affects charging time
Cab	Enclosed frame steel cab, glass doors, wipers, electronic display instrumentation, radio, adjustable seats, fifire extinguisher, reversing camera, electric fan.
Seat	Leather Upholstered Seats, Leather Cushions
Rearview mirror	Large fifield of view without dead angle rearview mirror
Lights and Signals	Dual headlights + turn signals + brake lights + overall rear tail lights + reversing voice prompt
Car	The steel plate is ≥1.5mm, the three sides of the bottom of the carriage are 8 cm folded, glued, sealed and welded, and the tail is inclined upwards by 12 degrees to ensure that the sewage does not leak
Steering method	Electric Power Worm Steering Gear
Braking System	Front and rear independent dual pipelines, vacuum-assisted hydraulic drum automatic brake system, auxiliary manual mechanical handbrake parking
Hydraulic system	DC series excitation and oil pump integrated connection with 72V1300W hydraulic power unit
Front suspension	Load-bearing steering front axle, axle tube thickness 5mm, diameter 60mm, hydraulic drum brake, 220mm large diameter brake drum, spring steel plate with hydraulic damper for shock absorption
Rear suspension	Load-bearing spring steel plate shock absorber system with hydraulic damper, the steel plate is 63mm wide, and a single piece is 8mm thick
Rear axle	Full suspension oil brake high and low speed integrated rear axle, no less than 250mm arge diameter split brake drum, no less than 30 thick half shaft, no less than 76mm half shaft axle tube thickness 5mm, hydraulic drum brake

Detailed Photos
This garbage truck has two types of garbage collection, Hang Barrel Type and Dump.This vehicle is capable of carrying 2 tons and holds 2000L of garbage High-quality tires: durable, strong, and wear-resistant, all kinds of road sections are smooth.Slope design: The carriage adopts a slope design to avoid leakage and scattering of garbage during transportation.LED headlights: bright and safe, longer lifespan, higher brightness, and can work at night.Hydraulic self-unloading: The carriage adopts a hydraulic self-unloading design, which is convenient for dumping all garbageSpring damping: safer and more comfortable to drive.
Packaging & ShippingPackaging: Exported standard package, or customized. Production time: 7-15 days after payment. Shipping terms: EXW, FOB, CNF, CIF, DDU. Shipping ports: Shanghai, Qingdao, Guangzhou, etc.Company Profile
FAQ Q1. Are you a manufacturer or a trading company?
A: We are factory located in Henan province, China and we have a professional foreign trade team at your service around the clock.
Q2. Can I order a sample to check your quality?
A: Yes for sure. Our MOQ is 1 piece and we charge only a little more than production price.
Q3. How long can I expect to get the sample?
A: If we have stock, we can ship out within 5 business days after receipt of your full payment. If we are out of stock, the production takes about 20 days.
Q4. Can you do OEM and ODM for us?
A: Yes we accept BOTH. We have a professional designer team who can translate your ideas into perfect design. Contact us for more details NOW.
Q5. How long is your production time?
A: Generally for Non-OEM orders, our lead time is 20-25 days and 35-45 days for OEM orders.
