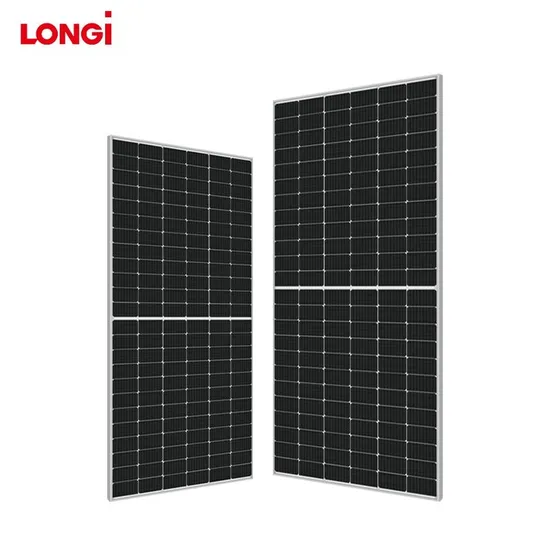

Chinese Factory Delivery Mono Solar Panels 580W 585W 590W PV Modules
Basic Info.
Model NO.
LR7-72HGD585~620M
Number of Cells
144
Application
Industrial
Condition
New
Certification
EST, ISO, CB, CE
Material
Monocrystalline Silicon
Frame
Anodized Aluminum Alloy Frame
Glass
Dual Glass,2.0+2.Omm Heat Strengthened Glass
Panel Efficiency
23%
Dimension (Lxwxh
2382*1134*30mm
Weight
33.5kg
Packaging Configureation
36PCS/Pallet720PCS/40hq
Solar Cell
a-Grade
Type
Half Cell,Double-Glass,Hbc
Efficiency
23%
Max.Power
620W
Transport Package
Carton
Specification
2382*1134*30mm
Trademark
Longi
Origin
Anhui, China
HS Code
8541430000
Production Capacity
50000 Piece/Day
Product Description
Products Description| Electrical Characteristics Test uncertainty for Pmax:±3% STC | ||||||||
| Module Type | LR7-72HGD-585M | LR7-72HGD-590M | LR7-72HGD-595M | LR7-72HGD-600M | LR7-72HGD-605M | LR7-72HGD-610M | LR7-72HGD-615M | LR7-72HGD-620M |
| Maximum Power (Pmax/W) | 585 | 590 | 595 | 600 | 605 | 610 | 615 | 620 |
| Open Circuit Voltage (Voc/V) | 52.01 | 52.12 | 52.23 | 52.34 | 52.44 | 52.55 | 52.66 | 52.77 |
| Short Circuit Current (Isc/A) | 14.29 | 14.37 | 14.45 | 14.53 | 14.61 | 14.69 | 14.77 | 14.85 |
| Voltage at Maximum Power (Vmp/V) | 43.57 | 43.68 | 43.79 | 43.90 | 44.00 | 44.11 | 44.22 | 44.33 |
| Current at Maximum Power (Imp/A) | 13.43 | 13.51 | 13.59 | 13.67 | 13.75 | 13.83 | 13.91 | 13.99 |
| Module Efficiency(%) | 21.7 | 21.8 | 22.0 | 22.2 | 22.4 | 22.6 | 22.8 | 23.0 |
| Electrical Characteristics Test uncertainty for Pmax:±3% NOCT | ||||||||
| Module Type | LR7-72HGD-585M | LR7-72HGD-590M | LR7-72HGD-595M | LR7-72HGD-600M | LR7-72HGD-605M | LR7-72HGD-610M | LR7-72HGD-615M | LR7-72HGD-620M |
| Maximum Power (Pmax/W) | 445.3 | 449.1 | 452.9 | 456.7 | 460.6 | 464.4 | 468.2 | 472.0 |
| Open Circuit Voltage (Voc/V) | 49.43 | 49.53 | 49.64 | 49.74 | 49.84 | 49.94 | 50.04 | 50.15 |
| Short Circuit Current (Isc/A) | 11.48 | 11.54 | 11.61 | 11.67 | 11.74 | 11.80 | 11.86 | 11.92 |
| Voltage at Maximum Power (Vmp/V) | 41.41 | 41.51 | 41.63 | 41.72 | 41.82 | 41.92 | 42.03 | 42.13 |
| Current at Maximum Power (Imp/A) | 10.76 | 10.82 | 10.88 | 10.95 | 11.02 | 11.08 | 11.14 | 11.21 |
| Mechanical Loading | |
| Front Side Maximum Static Loading | 5400Pa |
| Rear Side Maximum Static Loading | 2400Pa |
| Hailstone Test | 25mm Hailstone at the speed of 23m/s |
Certifications Packing & Delivery SUNRANGE Project Show
