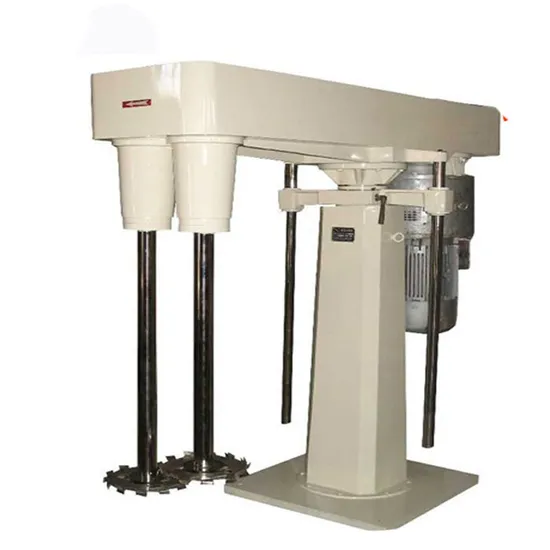

The Manufacturer Directly Provides Customized Complete Sets of Paint Production Line Equipment Strong Disperser Coating and Paint Mixer

Product Description

Production processThe equipment can independently complete the dispersing and grinding, refining, cooling, filtering, vacuum suction, semi automatic filling the whole process, greatly reduce the labor intensity, the production time is the traditional equipment consuming 1 / 5, shortening the processing time, and easy cleaning. The utility model can be operated in a vacuum state, with no bubble production, no dust flying, and the quality of products is greatly improved.
production line equipment1)High speed machine
2)Horizontal sand mill ;
3)vacuum system
4)Paint mixing kettle
5)Fast open bag filter,
6)Paints filling machine
The specific configuration is based on the actual needs
Introduction1)Pulp part:
The solvent through the liquid metering device is added to the liquid material groove, by vacuum suction to emulsifying kettle, start low speed anchor mixer, the powder material is sucked into the vacuum emulsifying tank for continuous stirred 10 minutes, then turn on the two sets of vertical high shear emulsifying 10 minutes, finally use horizontal emulsion machine, continuous cycle 30 minutes, finished slurry. A high shear inside the tank and an emulsion pump outside the tank are also used,
Ensure further refinement of materials, and greatly shorten the operation time.
2)paint part:
By vacuum, resin, film-forming agent from the liquid tank into the low-speed stirred tank, slurry through the bag filter is sucked into the low-speed mixer, the emulsion or solvent, additives, slurry mixing, then adding additives (thickener), blending paint.
3)filter packing:
After a good tune paint, vacuum defoaming after 5 minutes, stirring was stopped by a bag filter coating to semi-automatic filling machine for packaging. When the coating material using a two bag filters, can be switched with each use, does not affect the filling speed.

model	power(kw)	Lifting height(mm)	Spindle speed(r/min)	capacity(L)	diameter(mm)	weight(kg)
FSJ900-1.5	15./2.2	900	0~1420 0~3000	50	150	300
FSJ900-3	3/4	900		100	200	550
FSJ1000-5.5	5.5	1000		150	250	800
FSJ1000-7.5	7.5	1000		300	250	850
FSJ1000-11	11	1000		700	300	950
FSJ1200-15	15	1200		1000	300	1000
FSJ1200-18.5	18.5	1200		1200	350	1200
FSJ1200-22	22	1200		1500	350	1300
FSJ1400-30	30	1400		1800	400	1500
FSJ1400-37	37	1400		2200	450	1500
FSJ1600-55	55	1600		3000	500	1800

Production line characteristic1) JCT mechanical equipment Co., Ltd. is a research, development, design, manufacture, installation, debugging in one of the chemical machinery and equipment manufacturers, Have experience in design and manufacture of paint production equipment more than 15 years,
2)Paint equipment produced by JCT company,Well made,Reasonable structure,Easy to
operate,It is suitable for producing all kinds of solvent - based paint and water - based coatings.
