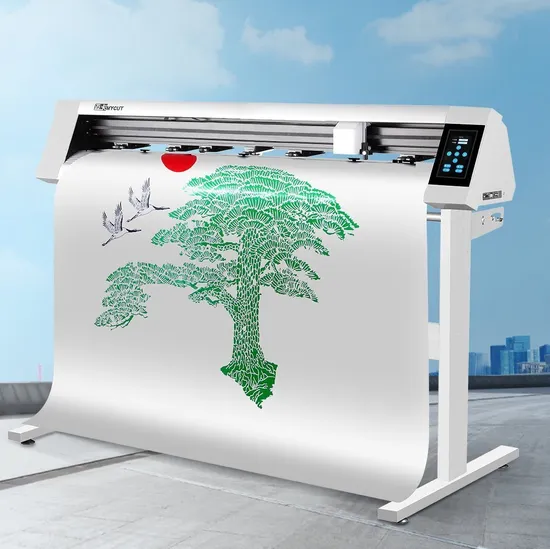

New Mycut 5.5inch Touch Screen Camera Scan Vinyl Cutting Plotter

Product Description

NEW MYCUT Source Factory 5.5inch Touch Screen Vinyl Cutting Plotter
Product Description: Main Features:
1. Integrated carriage head board and imported grit roller make it strong and high precision; 2. With camera sensor for accurate mark detection on contour cutting, can cut any base color or reflective materials, adapt the material automatically no matter what material; while laser sensor can not make; 3. 5.5inch Big Touch Screen, easy operation; 4. Except USB and U-disk port, it has Ethernet port which made transmission signal more stable and faster, many computer can share with one cutting plotter for using; 5. Real high speed 256MB memory; 6. High precision integrated steel roller: guaranteed 5m without deviation of paper feeding; 7. High accuracy machine structure allows to cut 2mm letters without distortion; 8. High performance 32-bit processor with ARM Cortex-M3; 9. Repeat cutting function makes your work more efficiently;
10. WIFI cutting function available; 11. Low noise: whisper quiet motor perfect for home&office use; 12. Aluminum alloy body makes it more durable and elegant;

Model	MC630T(24'')	MC1200T(48'')	MC1500T(59')
Main Board	High-performance & intelligent ARM 32 CPU; 256MB memory
Driver	High speed stepping motor, micro-step driver
Max Paper Feed Width	730mm	1400mm	1600mm
Max Cutting Width	630mm	1280mm	1500mm
Max Cutting Speed	650mm/s
Cutting Force	0-500g/0-1000g (optional configuration)
Mechanical Precision	0.01mm
Repeatable Precision	< +-0.1mm
Plotter Instruction	DM-PL/HP-GL Automatic Identification
Interfaces	USB / U-Disc port / Ethernet port
Power Supply	AC110V /220V±10%, 50Hz/60Hz
Software	Signmaster, Coreldraw
Noise at Work	≤50 DB
External Dimension	1000*320*390mm	1670*320*390mm	1900*320*390mm
Shipping Weight	30kgs(stand included)	42kgs(stand included)	50kgs(stand included)

Packaging & Shipping
Standard Accessories
1) floor stand 2) 1power cable 3) 1 USB cable 4) 3 Cutting Blade
5) 1 Blade Holder 6) 1 plot pen&holder 7) Signmaster plugin 8) User Manual(CD)


Standard Packing
With great quality Foam and Carton Packing
Make sure the machine won't be damaged during shipping

Delivery Info
within 7 days for order less than 100 units.
Within 15 days for order more than 100 units.

Our Services
1.One year free warranty, main parts are free charge when damaged during the guarantee period.
2.Free training course at our factory with professional engineers.
3.We provide the consumable parts at agent price when you need replacement
4.24 hours online service each day, free online technical support.

Company Information
Founded in 2015, Huansheng Intelligence (Shenzhen) Co.,Ltd is a professional manufacturer of vinyl plotter, sheet cutter, die-cutter, and other cutting machine equipment. Our factory approvel with ISO9001: 2008 quality control, insists to test every machine meticulously in the workshop. And our professional team offer customers with comprehensive and thoughtful service.
Our cutting plotter has been widely used in the following areas: clothing, advertise sign,sticker,paper cutting,traffic signs and heat transfer industries etc.
