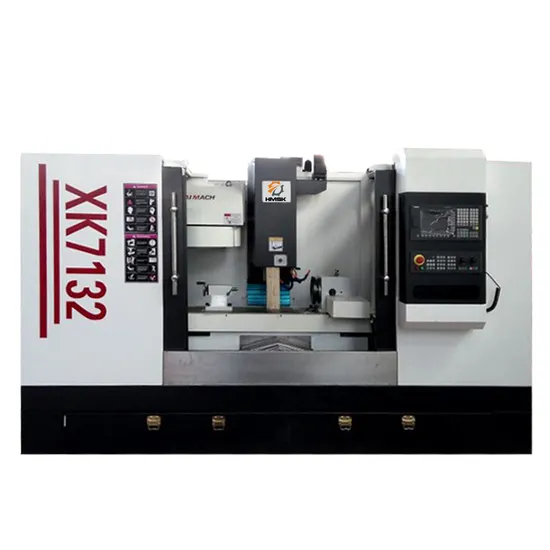

XH7132 CNC Milling machine for metal work with CE standard
Basic Info.
Model NO.
XH7132
Structure
Vertical CNC Milling Machine
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Worktable Size
150*400mm
X Axis Travel
900mm
Y Axis Travel
450mm
Z Axis Travel
500mm
Main Power
5.5kw
Spindle Speed
8000rpm
Spindle
Bt40
Transport Package
Poly-Wood Case
Specification
CE, SGS, ISO
Trademark
WMT
Origin
Chizhou, Anhui
HS Code
845961900
Production Capacity
20 Sets Per Month
Product Description
Features:CNC milling machine:
BT30/NT30, servo motor
Function:drilling , tapping, chamfering, bearing, milling face thread, handle and tower
Aesthetic and elegant modeling.
High efficiency for automatic knife changing.
X/Y/Z axes adopt rectangular guide way,
The spindle frame is used in the lathe pedestal to increase its stability and stiffness.
The machine has a good rigidity and strong vibration resistance.
It has a good chip removal performance.
Main Technical Data:
Specification | XH7132 |
Table size | 1500x330mm |
X/Y/Z axis travel | 900x450x500mm |
Spindle motor | 5.5kw servo motor |
Distance between spindle center and surface column | 500mm |
Spindle taper | BT40 |
Machine controller | GSK990, SIMENS 808D |
Rapid speed of X/Y/Z axis | 12m/min |
X/Y/Z way motor torque | X/Y 8N/M Z10N/M |
Position precision | 0.02/300m |
Spindle speed | 20-8000rpm |
T-slot | 3-18-85 |
Table load | 500kgs |
Distance from spindle to table | 100-600mm |
Packing size | 2200x2100x2450 |
Full cover
Half cover
