High Efficiency Compact Battery Raw Materials Mixing Machine Vacuum Mixer for Lithium Battery Experiment Research

Product Description

High Efficiency Compact Battery Raw Materials Mixing Machine Vacuum Mixer For Lithium Battery Experiment Research

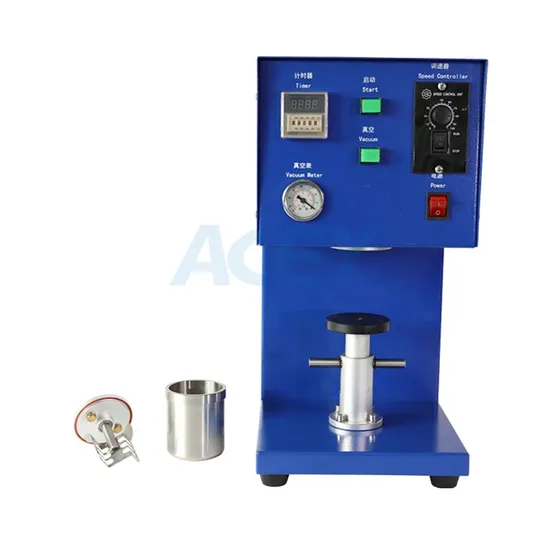

Product Description ACEY-VM-150ML The cup type vacuum mixer is a high-efficiency equipment integrating vacuum mixing and dispersion. It is suitable for the positive and negative slurry mixing process in the battery experiment process, as well as the mixing of powder materials and various ceramics; because the mixing is completed in a vacuum state, it is fully realized There are no bubbles, so the filling of the material and the compactness of the model are improved.
Features *Adopt industry-leading soft sealing technology, good sealing effect.
*The stirring motor adopts gearbox frequency conversion adjustment, and different speed and torque can be selected according to different processes and different viscosities;
*Small size, can save space;
*Exquisite appearance, using three-dimensional geometric design, simple and beautiful;
Product Parameters

Product Name	Cup vacuum mixer
Model No.	ACEY-VM-150ML
Power supply voltage	AC220V
Rated power	150W
Stirring speed	0~320 rpm speed regulation by frequency converter
Vacuum	-80Kpa or more
Accessory volume	150ml ~ 250ml stainless steel vacuum stirring tank, can be made according to customer requirements.
Mixing time	0~9999 minutes (can be set)
Oscillation mode	stepless speed regulation
The size of the whole machine	about 335m×315mm×515mm (length×width×height)
Weight of the whole machine	about 20kg

Q1:How to order?
A: Please send us your purchase order by email or call us sales, or we can make the proforma invoice under your request.We need to know the following information for your order before sending your Pl. Payment methods? T/T, L/C, D/P and so on.
1)Product information-quantity, specification(size, material, technological if needed and packing requirements etc.)
2)Shipping information-company name, street address, phone number,destination sea port.
Q2: How to control quality?
A,All the raw materials by IQC(Incoming Quality Control) before launch whole process into the process after the screening,
B, Process each ink in the process of IPQC(Input Process Quality Control)patrol inspection.
C, After finished by QC full inspection before packing into the next process packing.
D, OQC before shipment for each slipper to do full inspection.
Q3:How do I install and operate the machine myself?
A: Our system development is based on the integrated development view, when you get the machine, just connect it to the power supply and the machine is ready to work, as the English software is already installed on the machine, all you need to do is to learn how to use the software, a complete English user manual will be sent to you with the machine.
Q4: How do I get technical support after purchase?
A: Our factory provides online technical support in English, you can get to know us easily online through Skype, Wechat, WhatsApp or E-mail. If you need any remote assistant support, we will support you through Team viewer software.
Q5:What's the warranty for the items?
A: We are very confident in our products and we package them very well so you will usually receive your order in perfect condition. The warranty on the equipment is one year (12 months) and if any part of the equipment is damaged within one year due to non-human factors, we will provide a replacement part free of charge.
Q6:Can I customize products?
A: Yes, OEM&ODM is available! we can provide not only standard machines but also customized machines according to your requirements. Don't hesitate to tell us your requirement, we will try our best to meet your needs.
