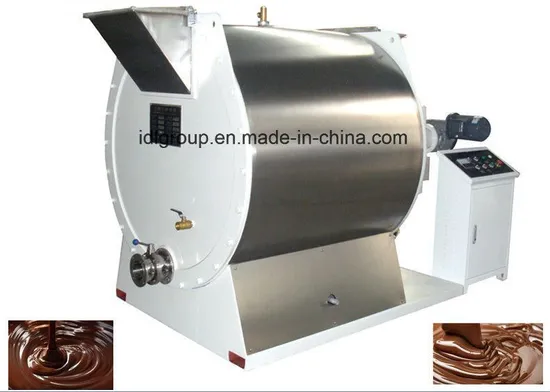

500L-1000L Chocolate Conche Chocolate Conch Machine for Refining Chocolate Paste

Product Description

Chocolate Conche/ Chocolate Grinding Machine/ Chocolate Milling Machine
Product Description
a) Chocolate conche is one of the major chocolate machines in the chocolate production line which is used for the fine grinding chocolate material.
b) The fine grinding time is about 14~20 hours, the average granularity can achieve 20μm.
c) This chocolate machine has many merits such as tight structure, ampere meter, easy operation, convenient maintenance, low investment, and so on.
d) It is suitable especially for the technical request of medium chocolate and candy factory.
Technical Specifications
Maximum capacity: 1000L
Grinding fineness: 20-25um
Main axle rotating speed: 35rpm
Grinding time: 14-20h
Main motor power: 18.5kw
Electrical heating power: 2*2kw
weight: 3500kg
Outside dimensions: 2627*1280*1520mm
Parameters of different types of chocolate conche:

Model	ICH40	ICH500	ICH1000	ICH2000	ICH3000
Maximum capacity (L):	40	500	1000	2000	3000
Grinding fineness (um)	20-25	20-25	20-25	20-25	20-25
Grinding time (h)	7-9	12-18	14-20	18-22	18-22
Main motor power (kw)	2.2	15	22	37	55
Heating power (kw)	2	7.5	7.5	9	9
Machine weight (kg)	380	2800	3500	5300	8500
Outside dimension (mm)	1100X800X1100	2500X1080X1370	2780X1330X1800	3320X2000X1950	4200X2000X1950

Product Detailed Photos
Company Profile
After Sales Service
We can provide door to door services and turnkey projects for customers from all over the world.
Supply of spare parts for whole product life time. 7*24 hours online technical support. Free training for operation & maintenance of equipment. On site installation & commissioning. Welcome to our factory, IDL will be your ideal partner.
