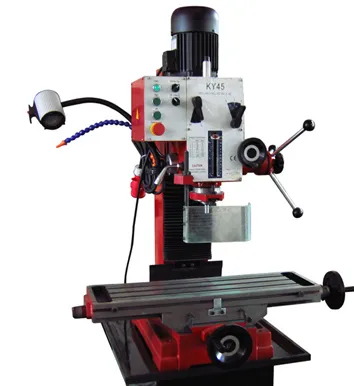

Manual Mills Table Top Milling Machine Ky45fg/Ky40fg/Ky32fg High Precision Multifunction Drilling and Milling Machine for Metal Working
| US$1,120.00-1,380.00 | 3 Sets (MOQ) |
Basic Info.
Model NO.
KY45FG/KY40FG/KY32FG
Layout
Vertical
Controlling Mode
Artificial
Automatic Grade
Automatic
Precision
Precision
Certification
CE
Condition
New
Color
Red
Spindle Travel
130mm
Face Milling Capacity
80mm
End Milling Capacity
32mm
Power
1.5kw
Transport Package
Wooden Case
Specification
KY45FG/KY40FG/KY32FG
Trademark
KY
Origin
China
Production Capacity
150-200 Sets /Month
Product Description
| Specifications | |
| Drilling capacity | 32mm/40mm/45mm |
| Face milling capacity | 80mm |
| End milling capacity | 32mm |
| Max. Distance from spindle nose to table | 450mm |
| Min. Distance from spindle axis to column | 260mm |
| Spindle travel | 130mm |
| Spindle taper | MT4 or R8 |
| Step of speed | 6 |
| Range of spindle speed 50Hz | 80-1250 rpm |
| 60Hz | 95-1500 rpm |
| Swivel angle of headstock perpendicular Size of table | 800*240mm/700*240mm |
| Forward and backward travel of table | 175mm |
| Left and right travel of table | 500mm/400mm |
| Power | 1.5KW |
| Voltage/frequency | As customer's requirement |
