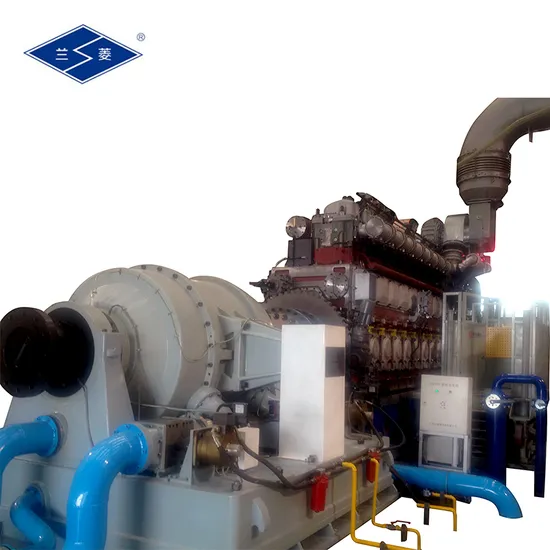

3300kw Hydraulic Dynamometer Engine Test Bench Motor Test Bench Engine Dyno

Product Description

YP3300 Hydraulic dynamometer

Summary
YP series (pressure type) hydraulic dynamometers have been widely used abroad in the 1960s and 1970s. In 1985, through license trade, China introduced the technology of Zoller Company, West Germany, to develop and produce this type of advanced dynamometer. At present, the process technology has been used in the production of a whole series of products in China. Internationally, there are Fraud in England and Cairn Company in the United States. In addition, two domestic companies have produced this series of products in small batches through imitation. Our company digests and absorbs foreign technology, carries out new optimization design and production, and can provide a full range of products.
YP series hydraulic dynamometer has 12 specifications, all of which are controlled by electric drainage butterfly valve. That is, by changing the opening of butterfly valve to change the size of absorption power. The braking power range is from 20KW to 5900KW, and the variety is complete. Domestic and foreign users choose the right type according to their engine power range.
This product is mainly used to test the effective power of various diesel engines, gasoline engines, motors and other power engines. It is an indispensable test equipment in the performance test of power engine and the efficiency test of transmission machinery.
The basic model of this product is one-way test. If users need to order with two-way test at the same time, please make a request and our company will give special customization.
Technical specifications
1.Main features
Small size, easy installation;
Simple structure, easy operation and maintenance;
High braking moment;
High accuracy of measurement;
Work stably and reliably;
Achieving High Precision Instantaneous Speed Measurement with Magnetoelectric Velocity Sensor;
Fast Load Control of Electronically Controlled Butterfly Valve;
Fast response, suitable for dynamic test

The engine comprehensive performance test bench is mainly used to test the fuel consumption of the engine; output torque, output speed, output mechanical power; emissions, exhaust gas analysis; temperature rise, vibration, noise, etc. It can carry out type test and factory test to evaluate the comprehensive performance of the engine, and provide accurate parameter basis for engine development, production, maintenance and field application. The engine comprehensive performance test bench can test all kinds of diesel engines, gasoline engines, etc.
This type of engine test bench is mainly composed of the tested engine, torque speed sensor, simulated load (eddy current brake / dynamometer, hydraulic dynamometer, motor, etc.), installation platform, connecting fixture, measurement and control system (instrument, software, etc.) , Electrical control system.
The test process can be loaded manually or automatically, the test results can generate customized test reports, curve charts, etc., the process data can be generated in Word, Excel, or PDF format files, and the data can be saved, edited, and printed. The test system interface is simple, easy to upgrade and maintain. The company trains the operating personnel free of charge to provide guidance for use and maintenance.
Users can choose test items according to specific requirements:

Fuel consumption test
Output torque, output speed, output mechanical power
Temperature rise test (vibration, noise, etc.)
Emission and exhaust gas analysis test

Specific test items can be communicated or customized by both parties, technical support phone

Lanmec Technology's various test benches, dynamometers and other customers are located in aerospace, aviation, ship parking, weapons, petroleum, scientific research units, colleges and universities, testing institutions, etc., and are exported to the United States, Germany, Italy, Turkey, Chile and India Country, welcome to call us!
