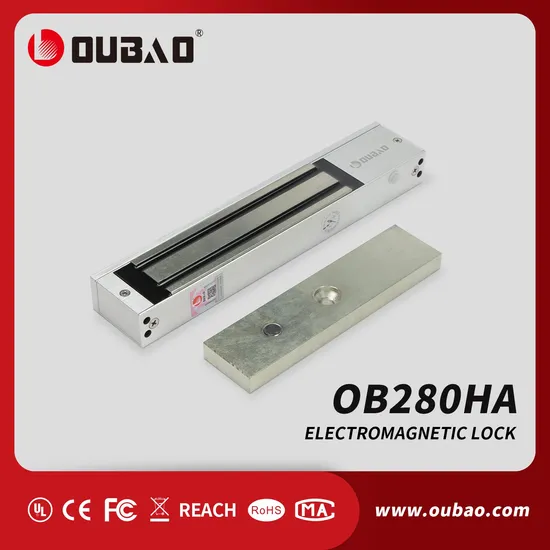

DC12V or 24V Factory Supply High-Quality Electromagnetic Magnetic Magnetic Lock for Access Control

Product Description

Holding Force	280KG±10%(600LBS)
Operating Voltage	12VDC (DC24V upon request)
Working current	400mA
Operating temperature	*-25 ºC~60 ºC
Working humidity	10%~90%RH
Way of unlock	Power on to lock(Fail safe)
Installation method	Hanging installation (Surface installation)
Door opening angle	90°
Panel material	High strength aluminum alloy
Finish	Oxidation & brushed finishing
Signal feedback	NO/COM/NC
Indicator light	Red shows locked, Green shows unlocked
Magnetic size	238*47*27 mm
Armature plate size	158*40*13mm
Scope of application	Wooden door, Fireproof door, Glass door, Metal door
Service life	More than 500000 times
Weight	1.85kg/PCS
Packing quantity (PCS/CTN)	10
Certifications	UL ROSH

Electromagnetic locks are a more and more popular choice among security installers for being simple to install, durable, reliable and very resistant. A large electromagnet is mounted on the door frame and the Armature plated is mounted on the door.
When the magnet is powered and the door is closed, the Armature plated is held fast to the magnet. One must unlock the mag-lock to both enter and leave.
In order to satisfy all customers' needs, we offer a wide range of electromagnetic locks in different sizes, voltages, mounting and holding forces.
FAQ
Q: Do you accept OEM or ODM?
A: Yes, we accept OEM and ODM.
Q:What is the MOQ for each product?
A:For retail, we can do any quantity for you and they will be sent by express.
For wholesale,the MOQ usually is 300pcs.
You can also mix different items and we can ship them by sea together.
For detail pls contact us by Email or online talking.
Q: Can you send samples before placing an official order?
A: Yes of course.Our sample is free but the express need bear by you.
Q: How long is the warranty period?
A: We offer different warranty periods for different products ranging from 2-5 years.
