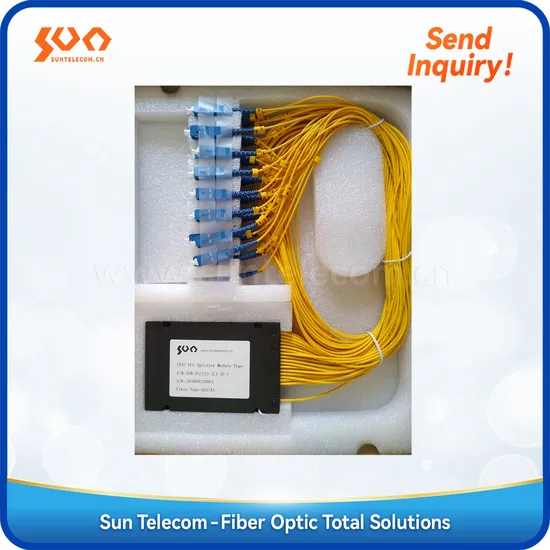

SUN-PLC Fiber Optic Splitter, A Premium Quality Planar Light Wave Circuit (PLC) Splitter with Splitting Ratio: 1X2/1(2)X4/1(2)X8/1(2)X16/1(2)X32/1(2)X64
| US$1.00-100.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SUN-PLC
Certification
ISO, RoHS
Condition
New
Product Type
1X2 1X4 1X8 1X16 1X32 1X64
Operating Wavelength (Nm)
1260-1650
Insertion Loss (dB)
<=3.8 <=7.1 <=10.2 <=13.5 <=16.8 <=20.1
Return Loss (dB)
>=55
Transport Package
Paper Box
Trademark
SUN & logo
Origin
China
HS Code
8536700000
Production Capacity
20, 000 Pieces/Mth
Product Description
Product DescriptionSUN-PLC Fiber Optic Splitter Sun Telecom's SUN-PLC series of planar light wave circuit (PLC) splitter is optical power management device which uses silica optical waveguide technology. It has small size, high reliability, wide operating wavelength range. It is widely used in PON networks and realizes optical signal power splitting.
Features Low insertion loss Low PDL High reliability and stability Good channel uniformity
Applications FTTH project CATV network PON network
Specifications
| Parameters | Specification | |||||
| Type | 1x2 | 1 x 4 | 1 x 8 | 1 x 16 | 1 x 32 | 1 x 64 |
| Operating Wavelength (nm) | 1260~1650 | |||||
| Insertion Loss (dB) | ≤3.8 | ≤7.1 | ≤10.2 | ≤13.3 | ≤16.5 | ≤19.8 |
| Loss Uniformity (dB) | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.5 | ≤0.5 | ≤1.0 |
| PDL (dB) | ≤0.08 | ≤0.08 | ≤0.08 | ≤0.1 | ≤0.1 | ≤0.2 |
| Return Loss (dB) | ≥55 | |||||
| Directivity (dB) | ≥55 | |||||
| Wavelength Dependent Loss (dB) | ≤1.0 | |||||
