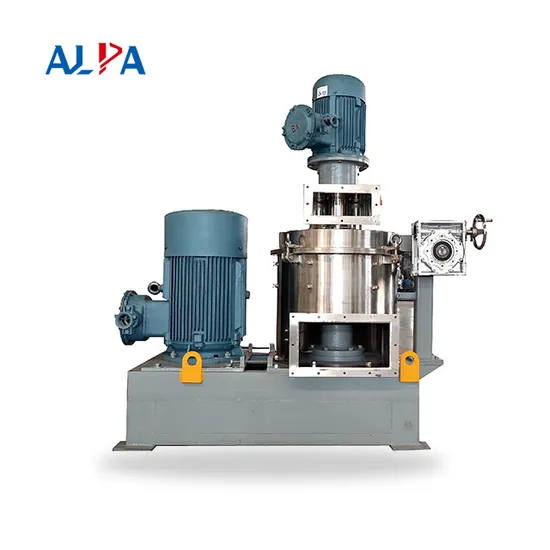

Ultrafine Grinding CSM-V Air Classifying Mill
Widely used in non-metallic minerals (Mohs hardness < 5), chemical, inorganic salts, pharmaceuticals, food, pigments, dyes, pesticides, battery materials, minerals, refractory materials and other industries.
FEATURES AND ADVANTAGES
Available D50:2~45μm. Classifying wheel is vertical installation Integration of grinding and classifying, classifying wheel is adjusted to obtain ideal particle. Compact structure and small occupation, easy to disassemble and clean, no dead angle design Lower installation power, wide application, high cost-performance. Different types of grinding disc (pin, hammer, teeth or others) are used based on characteristics of materials to obtain different grinding forces and improve grinding efficiency. Key parts like the hammer, gear ring and classifying wheel are made of ceramic such as aluminum oxide, zirconium oxide or silicon carbide, ensuring non-contact with metal throughout the grinding for high purity of the final product. Grinding is in closed system, low dust and noise, clean and environmentally friendly production process. PLC control system, easy operation. The motor can be connected with a belt to increase the speed and break through the problem of high-speed motors without the well-known motor brand. Can be used in series with multi-stage classifiers to produce products with multiple sizes at one time. Optional explosion-proof design, meet the ultra-fine grinding processing requirements of flammable and explosive oxide materials High-temperature, low-temperature, normal-temperature, airtight cycle, Inert gas cycle designs are available, for different grinding requirements of different materials.
WORKING PRINCIPLE

The material is evenly fed into the grinding chamber by the feeding system, strongly impacted by the high-speed rotating grinding disc. At the same time, it is subjected to centrifugal force and collides with the grinding ring gear, and is subjected to various comprehensive forces such as shearing, friction and collision to finished grinding. The grinded material moves to the classifying zone with the airflow. The classifier is adjusted by frequency conversion, separates the coarse and fine materials, the product that meet the fineness requirement enters the cyclone collector and the dust collector with the airflow, and the coarse powders return to the classifying zone, secondary grinding.
TECHNICAL PARAMETERS
Parameter / Model 280 350 410 510 710 760 900 1000 1100 1250 1500 2000

Diameter of grinding disc (mm)	280	340	410	510	710	760	900	1000	1100	1250	1500	2000
Diameter of grinding gear ring (mm)	290	350	420	520	720	770	910	1010	1110	1260	1510	2010
Speed of grinding disc (rpm)	7500	6215	4800	4200	3000	2800	2350	2100	1920	1800	1500	1120
Linear speed of the outermost end of the grinding disc (m/s)	110.0	110.6	103.0	112.2	111.5	111.4	110.7	110.0	110.6	117.3	117.0	117.0
Grinding motor power (kW)	7.5	11~15	22	30	45	55	75~90	90	110~132	160~200	250	355
Classification motor power (kW)	2.2	3	4	5.5	7.5	7.5~11	15	15~22	22~30	22~37	45~55	55~75
Rotation speed of classifying wheel (rpm)(max)	4500	4000	3250	3000	2920	2500	2200	2000	1800	1800	1500	1150
Air volume (m³/h)(max)	700	1200	1800	3000	4500	5400	8000	10000	12000	16500	22500	36000

Note: The production capacity is closely related to the particle size, specific gravity, hardness, moisture and other indicators of the raw materials. The above is only for selection reference.
