Jd-0.75 High Speed Electric Mining Dispatching Winch
| US$2,400.00-6,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
JD-0.75
Speed
Fast
Carrying Capacity
Middle-Level
Tonnage
0.4t
Reel Number
1
Running Mode
Moving
Feature
Explosion-Proof
Certification
CE
Standard
National Standards
Model
Jd-0.75
Traction Force Kn
7.5
Average Speed M/S
0.71
Dia of Wire Rope mm
9.3
Drum Size mm
200*300
Rope Capacity M
250
Total Reduction Ratio
34.81
Motor Type
Ybj-11.4
Motor Power Kw
11.4
Motor Voltage V
380/660
Weight Kg
400
Transport Package
Wooden Case or Carton Case
Specification
1085*730 *697 mm
Trademark
China Coal
Origin
Jining City, Shandong Province, China
Production Capacity
1000 Sets Per Month
Product Description
Introduction of JD-0.75 High Speed Electric Mining Dispatching WinchJD series explosion-proof dispatching winch is used for dispatching trolleys, tramcar in underground parking lots, middle roadways, mining transportation lanes in mines, dragging or carrying heavy loads. We can design and manufacture different types of dispatching winch with maximum pulling force 7.5-40KN.zmwm10 Parameter of JD-0.75 High Speed Electric Mining Dispatching Winch| Model | JD-0.5 | JD-0.75 | JD-1 | JD-1.6 | JD-4 |
| Traction Force KN | 7.5 | 7.5 | 10 | 17.6 | 30 |
| Average Speed m/s | 0.71 | 0.71 | 0.78 | 1.4 | 1.44 |
| Dia of Wire Rope mm | 9.3 | 9.3 | 12.5 | 15 | 20 |
| Drum Size mm | 200*300 | 200*300 | 224*304 | 310*400 | 620*580 |
| Rope Capacity m | 250 | 250 | 400 | 440 | 480 |
| Total Reduction Ratio | 34.81 | 34.81 | 41 | 32.5 | 31.8 |
| Motor Type | YB132S-4-B5 | YBJ-11.4 | YBJ45-4 | YBJ40-4 | YB2-132S-4 |
| Motor Power KW | 5.5 | 11.4 | 25 | 40 | 5.5 |
| Motor Rev Rev/min | 1440 | 1460 | 1470 | 1470 | 1440 |
| Motor Voltage V | 380/660 | 380/660V | 380/660V | 380/660V | 380/660V |
| Di mention mm L*W*H | 1085*730 *697 | 1085*730 *697 | 1073*766 *727 | 1448*1255 *1260 | 1900*2350 *1370 |
| Weight KG | 400 | 400 | 578 | 1370 | 2800 |

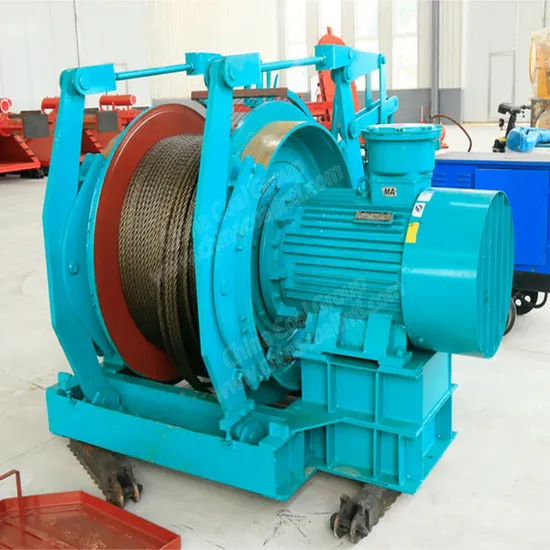

Pictures of JD-0.75 High Speed Electric Mining Dispatching Winch
