2-Row Potato Digger Farm Machine Combine Grain & Garlic Harvester for Onion & Potato Harvesting

Product Description

Product Description

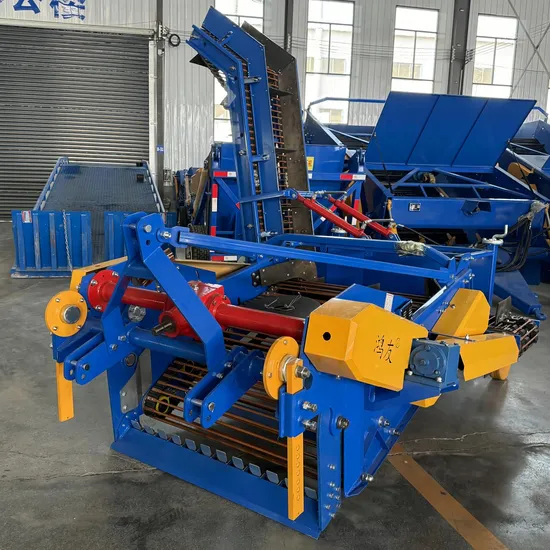

Potato Harvester

As a common crop, potatoes are grown in large quantities in many places. However, harvesting potatoes has always been a time-consuming, labor-intensive endeavor, especially when grown on a large scale. In addition, traditional artificial harvesting easily leads to potato damage and bruising, reducing the commercial value and storage life of potatoes. The use of harvesters to harvest potato and other potato crops, not only through the machine to complete the digging, cleaning, separation work, saving labor costs, but also to improve production efficiency.
Features of sweet potato harvester :

1.Potato harvest machine is mounted on small tractors
2.equipped with three point linage and PTO.With digging plowshare
3.The shaking grids are balanced by the rear flywheel
4.potato harvester is mainly used for reaping potato, sweet potato, peanut, onions, garlic, Chinese yam, taro and other underground rhizome crops.
5.It has the advantages of high efficiency, low breakage, fast to leak the soil, long service life.
The bearings used in the multi-functional harvester produced by the DE ZHOU HONGYOU AGRICULTURAL MACHINERY CO.,LTD are ETK bearings, and the chains used are Donghua chains.Bearings and chains are international standards. In addition, for the main engine frame, gearbox, if damaged within one year, DE ZHOU HONGYOU AGRICULTURAL MACHINERY CO.,LTD will provide you with a replacement service.
Product Parameters

	4UDS-110 PARAMETER LIST
NO.	PROJECT	DESIGN VALUE	NO.	PROJECT	DESIGN VALUE
1	Structural Style	Three Point Suspension	10	Type of excavation device	Movable Shovel
2	Working Size (length*width*height)	2900*3200*1700mm	11	Blade Material	65Mn
3	Transport Dimensions (length*width*height)	2900*2400*2300mm	12	Digging Depth Adjustment Range	0~250mm
4	Overall Weight	800kg	13	Depth Limiting Mechanism Type	Central Pull Rod
5	Working Width	1100mm	14	Conveyer Type	Belt type
6	Operation Efficiency	≥0.17 ha/h	15	Conveyor Chain Clearance	45mm
7	Supporting Power/Machine Horsepower	≥70HP	16	Chain Bar Material	55CrSi
8	Matched To The Power Output Shaft Speed	540r/min	17	collection method	Instant loading
9	Matching Hangin Width	600mm	18	Collection height	≤1500mm
