US$22.29-89.16
|
10 Pieces
(MOQ)
|
Basic Info.
Model NO.
Single-plug Internal Thread Valve
Nominal Pressure
PN1.0-32.0MPa
Channel
Straight Through Type
Structure
Fixed Ball Valve
Function
Relief Valve, Atmospheric Valve, Bypass-Valve
Temperature
Normal/High/Low Temperature
Application
Industrial Usage, Fluid Delivery Pipeline
Product Name
Single-Plug Internal Thread Valve
Working Pressure
13bar(-40~+80ºC), 16bar(-20~+60ºC)
Working Temperature
-40ºC~ +80ºC
Colors
Multi-Color Available for Your Choice
Transmission Medium
Compressed Air, Vacuum, Inert Gas, More Contact Us
Transport Package
Standard Export Carton Packing
Specification
DN20-200 Optional
Production Capacity
1000000m/Year
Product Description

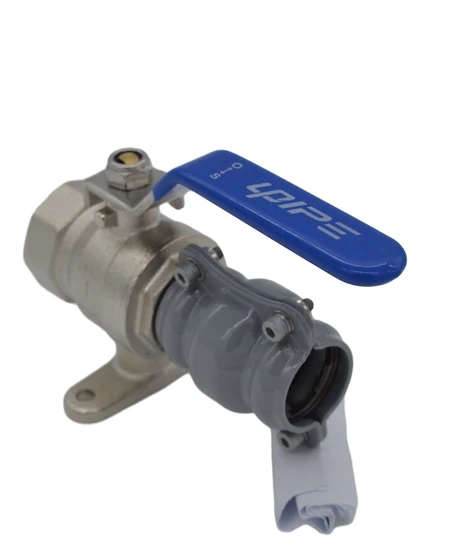

Product Description The Role of Single Side Plug Internal Thread Ball Valve in Aluminum Alloy Compressed Air Piping The single side plug internal thread ball valve, manufactured by Suzhou Jieyou Fluid Technology Co., Ltd., plays a crucial role in aluminum alloy compressed air piping systems.
Fluid Flow Control: This valve controls the flow of fluid by rotating the ball, allowing for smooth flow or preventing fluid from passing through the pipeline. Fast Shut-Off Function: With its fast shut-off function, the valve enables quick closure of the pipeline, preventing any leakage. Pressure-Resistant Performance: Designed to withstand high pressure, this valve ensures the safe operation of the system. Corrosion Resistance: The valve is made with corrosion-resistant materials, making it suitable for use in aluminum alloy compressed air pipelines that often contain corrosive media. Simple Maintenance: Thanks to its simple structure, the valve allows for easy maintenance and replacement of parts. Only the disassembly of connection threads is required. Overall, the single side plug internal thread ball valve is an integral component in aluminum alloy compressed air piping systems. It provides control over fluid flow, fast shutdown, pressure and corrosion resistance, as well as simple maintenance.
Product Parameters
| S.N | Nominal diameter(mm) | W(mm) | H(mm) |
1V 1001 41 | DN20-G1/2''(Assembly) | 104 | 82 |
2V 1001 41 | DN25-G1/2''(Assembly) | 98 | 82 |
22 1001 41 | DN25-G1''(Assembly) | 114 | 91 |
1V 1001 40 | DN20-G1/2'' | 76 | 82 |
2V 1001 40 | DN25-G1/2'' | 71 | 82 |
22 1001 40 | DN25-G1'' | 86 | 91 |
44 1001 40 | DN40-G1 1/2'' | 109 | 107 |
55 1001 40 | DN50-G2'' | 121 | 121 |
66 1001 40 | DN65-G2 1/2'' | 190 | 153 |
77 1001 40 | DN80-G3'' | 210 | 175 |
*The same size EQUAL PIPE TO PIPE CONNECTOR shall be equipped code ends with XXXXXX00. |
Hot Products
Photo | Product Name | Product Parmeters | Details |
| Aluminum Pipe | DN20-DN200 | Click on |
90° Elbow | DN20(Assembly) DN25(Assembly) DN20-DN200 | Click on |
Equal Pipe to Pipe Connector | DN20-DN200 | Click on |
Equal Tee | DN20(Assembly) DN25(Assembly) DN20-DN200 | Click on |
90°Quick Drop | DN40-DN20 DN50-DN20 DN65-DN20 DN80-DN20 DN100-DN20 DN125-DN20 DN148-DN20 DN200-DN20 ..... | Click on |
Equal Flange | DN20-DN200 | Click on |
1. Complete Reliability | Removable and reusable components, perfect for your factory environment Fast installation of shunt device and branch pipeline, convenient adjustment of production line Rich interfaces and accessories, suitable for any system All components are nonflammable |
2. Better Corrosion Resistance than 304 Stainless Steel | Anti-corrosion Internal Surface Treatment of Aluminum Alloy Pipe Alkali and acid corrosion resistance Internal surface always clean, no pressure loss of the pipe network system |
3. Easy Operation | Pipelines and connectors can be installed immediately without additional treatment -- no pre construction preparation is required Fast assembly, no welding, gluing or stranding required - time saving Easy assembley- no need for training Light weight, easy for cutting pipes -- easier to work on site Directly use -- the system can be tested and used immediately |
4. Energy Saving | Consistently high quality interior surfaces - clean air Low friction of inner surface -- high flow performance Precise pipe diameter - optimized sealing Automatic filling type large contact surface sealing system ,no leakage |
5. Excellent Resistance against the Following Environments | Corrosion Mechanical vibration Thermal variations U.V Compressor oil |
6. Durable, Beauty | Electrostatic spraying when leaving the factory Standard color, beautiful appearance |
Product Category & Application Product Name: Internal Thread Safe Connection Single Plug Ball Valve for Compressed Air/Gas Pipeline Company Name: Suzhou Jieyou Fluid Technology Co., Ltd. Keywords: Pipe Fittings, Flanged Ball Valve, Gas Valve, High Pressure Ball Valve, Plumbing Fitting, Flange Ball Valve, Union Ball Valve, Tube Fitting, Compression Fitting, Pipes Fittings, Fitting, Press Fitting, Pipe Fitting Supply, Split Ball Valve, 2 Way Ball Valve Attributes: Suitable for Gas, Alloy Material, Thread Connection Description: Discover our Internal Thread Safe Connection Single Plug Ball Valve, designed for efficient and sustainable fluid transportation in compressed air and gas pipelines. Made with high-quality alloy material and featuring a secure thread connection, this valve ensures reliable performance. Suitable for gas applications, it is an essential plumbing fitting for high-pressure systems. Explore our wide range of pipe fittings and valves to find the perfect solution for your needs. Company Profile
Suzhou Jieyou Fluid Technology Co., Ltd. Suzhou Jieyou Fluid Technology Co., Ltd. is a manufacturing company specializing in aluminum pipe, pipe fittings, and industrial aluminum profiles. We are dedicated to research and development, production, sales, and installation. Our company is located in the economic and technological development zone of Zhangjiagang, Jiangsu, covering an area of 200 mu with a total investment of 180 million yuan.
With our state-of-the-art facilities, including 5 aluminum alloy tube extrusion production lines, 3 deep processing production lines for finished products, and 2 production lines for industrial aluminum profiles, we have an annual production capacity of 3,000 tons of aluminum alloy pipes and 8,000 tons of industrial aluminum profiles. Our production and inspection equipment, including mold center, inspection center, R&D, and other equipment, are imported from Germany, South Korea, and Japan.
At Suzhou Jieyou Fluid Technology Co., Ltd., we pride ourselves on being a large-scale aluminum alloy manufacturer with first-class technical equipment. Our products are known for their high quality and reliability. Whether you need aluminum pipes, pipe fittings, or industrial aluminum profiles, we have the expertise and resources to meet your requirements.
Suzhou Jieyou Fluid Technology Co., Ltd. The company specializes in the innovation and deep processing of non-ferrous materials. Our wide range of high-quality products includes:
High intensity aluminum alloy pipe Stainless-steel pipe Copper-aluminum composite pipe Aluminum pipe with internal thread High-frequency welding of aluminum alloy collector pipe and pipe fittings Our products are designed to meet the diverse demands of customers worldwide. With our commitment to innovation, we offer more diversified and superior products that cater to various industries.
Our Customers Suzhou Jieyou Fluid Technology Co., Ltd. At Suzhou Jieyou Fluid Technology Co., Ltd., we are committed to continuously improving the reliability and durability of our products through sustained design innovation. Our complete innovation process, strict working condition design, and rigorous quality control measures ensure the production of high-quality products.
By choosing JIEU, you can expect powerful technical support for every project, while minimizing your costs. We offer the perfect total solution for fluid transportation, allowing you to achieve optimal return on investment and safeguard efficient productivity.
Exhibition After Sales Service UPIPE Series Product - Ten-year Quality Guarantee Suzhou Jieyou Fluid Technology Co., Ltd. is proud to offer a ten-year quality guarantee for our UPIPE series product. We are committed to providing exceptional products that meet the highest standards of quality and durability.
Quality Guarantee Details: Our company will replace or repair the product free of charge for any quality problems that arise within ten years from the installation and acceptance of the UPIPE series product.
Please note that the following reasons are not covered by the quality guarantee:
The product or component has exceeded the warranty period, unless it has an extended quality assurance service. The product has not been installed according to our stipulations or has been used beyond the applicable scope specified by our company. This includes failure to operate the product according to our company's manual and the requirements of the relevant installation and maintenance documents. Additionally, any damage caused by improper installation, storage, or operation, such as exposure to extreme temperatures, corrosive environments, or external forces, is not covered. Breakdown or damage caused by unauthorized installation, repair, modification, or dismounting performed by anyone other than our company's after-sales personnel or the designated service agent, unless authorized by a third-party after-sales service agency entrusted by our company. At Suzhou Jieyou Fluid Technology Co., Ltd., we strive to provide reliable and long-lasting products. Our ten-year quality guarantee ensures that you can trust in the durability and performance of our UPIPE series product.
