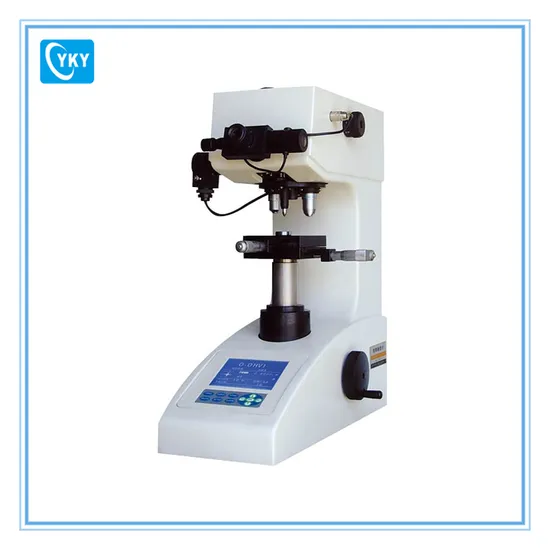

Digital LCD Portable Brinell Rockwell Vickers Hardness Tester

Product Description

brinell rockwell vickers hardness tester
Main Features:
Digital Brinell Rockwell & Vickers Hardness Tester with direct-viewing LCD display screen and single-chip microcomputer control system enables to realize the automatic operation of hardness test. The hardness tester has such characteristics as higher test precision, simple and easy operation, high sensitivity, easy usage, reliable load changing, stable displaying values. Beside manually move the test table up and down, the instrument completely realizes the automatic operations such as loading and unloading the test force, direct displaying hardness value, etc. With its built-in printer, the instrument records the main technique data during measurement process.
Main Technical Specifications
Initial Test Force (N): 98
Total Test Force:
The Vickers Hardness Test (N): 294.2, 588, 980
The Rockwell Hardness Test (N): 588, 980, 1471
The Brinell Hardness Test (N): 306, 613, 1839
Hardness Test Range
The Rockwell Hardness Test: (70-85)HRA,(30-100)HRB, (20-67)HRC
Accuracy of Displaying Value: ±0.1HR; Repeatability of Displaying Value: 0.5HR
The Brinell Hardness Test:
(8-650)HB Accuracy of Displaying Value (δ/%):±2.5; Repeatability of Displaying Value (Hcf/%)≤3.0
The Vickers Hardness Test
(14-100)HV Accuracy of Displaying Value (δ/%):±2; Repeatability of Displaying Value (Hcf/%)≤2.5
Dwell Time of Total Test Force(s): 1-60
Amplification of Microscope: 37.5X, 75X
Test Eyepiece: Automatically Digital Encoder
Readout Method of Hardness Displaying Value: LCD
Max Allow Height of Specimen (mm): 180 (Rockwell), 135(Vickers & Brinell)
Distance Between Indenter and Body of Instrument (mm): 140
Overall Dimension (mm): 463X215X700
Power Voltage: AC220V, 100W
Net Weight of Instrument (kg): 75
Accessories:
Rockwell & Vickers Indenter 1 pc for each;
Diameter: 1.5875, 2.5, 5mm Hard Alloy Ball Indenter: I pc for each;
Test Microscope 1 pc,;
Light Lamp 1 set;
Hardness Test Block: 5pcs,
Large, Medium, V-shaped Test Table 1 for each;
Power Cord: 1 pc;
Slipping Test Table: 1 pc;
Objectives: 1 pc
