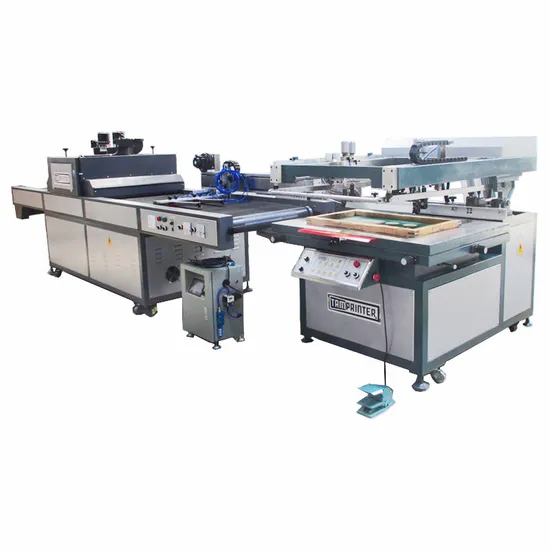

Packing Label Automtic Flat Screen Printer with UV Curing System

Product Description

TM-Z1 paper printing Video:
Instagramcom/p/CHnDLAggpXs/?igshid=1315ey1evnofo
Instagramcom/p/CMQnJvGAIxv/?igshid=acs59hv978sp
Serbian customer working HD Video can see uv effect:
https://youtu.be/REWl8zH-2Ik
Screen printing and then grab the paper and drag to the right, working short Video:
https://youtu.be/_LHgMCYg-ks
Self-drying ink screen printing, then drag the paper to the left to the production line, short Video of work:
https://youtu.be/lsC3sVF322E
Machine action demonstration + salesperson explanation Video:
https://v.youtubecomv_show/id_XNDY1MzM4OTk4OA==.html?spm=a2hbt.13141534.app.5~5!2~5!2~5~5~5!2~5~5!2~5!2~5!2~5~5!3~A
Various combinations of paper printing Video
http://youtu.be/3bpxVNTvWF0
http://v.youkucom/v_show/id_XNjg1ODc3NDI0.html
print paper Video:http://tamprinter.en.made-in-china.comThis is the preferred configuration for countless packaging printing factories and start-up companies, especially sign factories, display rack factories, and carton factories. They like this machine configuration the most, and one worker can produce quickly.
Technical parameter:

Model No.	TMP-70100
Worktable area	800X1100mm
Max printing area	700X1000mm
Max screen size	1000X1300mm
Min screen size	550X650mm
Thickness of print (mm)	0-20mm
Source power (kw)	2.3
Rated voltage (v/hz)	220/50
Printing speed (pcs/h)	500-1200
Machine size(mm)	1650X1220X1300mm
Plywood	1.8X1.37X1.5m 3.7CBM
Max table height	820
weight	480kg

Model No.	TM-UV750L
Conveyorbelt width(mm)	750mm
UV light power(kw)	5.6kw*2
Conveyor speed(m/min)	0-25m/min
Power (v/kw)	380/12.5
Dimensions(LXWXHmm)	4050X1050mmX1400mm
Plywood	4.2X1.2X1.6m 8.1CBM
Weight	350kg

Application:
Flat Screen Printer of this series is widely used in the packaging industry (cigarette packaging, wine packaging, gift packaging and other card paper printing) trademark, calendar, oil painting, computer keyboards, paintings, iron-on transfers, credit cards, stickers, printing; also suitable for the printing of the electronics industry.
UV curing machine is apply to the special effects such as wrinkle, frosted refraction gem crystal and convex oil on the bullion paperboard, metal, glass, plastic, and also the UV curing of the offset printing ink on the offset press production.
Features:
Screen printer
(1). Printing machine is driven by motor drive, which is belt drive, sensitive, balanced speed, speed adjustable.
(2). Oblique arm lifting motor, frequency control, the machine runs smoothly.
(3). Blade and back blade pressure regulating device, and can be adjusted to the thickness and size of printing.
(4). Vacuum adsorption fixed printing pieces.
(5). The printing plate has up and down, left and right, before and after tuning device, which makes it works accurate and convenient on board.
(6). Equipped with a safety device so that the oblique arm is stopped in an upper position having a reliable security.
(7). Electronic control unit centralized control by the microcomputer controller, the whole operation more simple, flexible, and easy maintenance.
UV curing machine
(1). With Teflone or stainless steel net, transmit speed steady and can be adjusted.
(2). With two UV lighting tubes, can turn on the light according to the need.
(3). Wink-dry makes the surface of the stocks high hardness and rub resistance.
(4). Tunneling-based make the whole machine light barrier good and without harm.
(5). Equipped with powerful nether induced draughe system and big intake airway, can absorbs the stock on the mesh belthard. It can be used with production line and other equipment easily.
About Us:
Tamprinter printing machinery group limited is one of the most professional special printer supplier of Plastic Field in China. We have supplied OEM service for the domestic counterparts since 2005. OEM products have been achieved CE certification.
Due to business expansion, Shenzhen Tamprinter printing machinery limited International trade department have been separated from the parent company in March 2013.
Key products: Pad printer, Screen printer, UV curing machine, Heat transfer machine.
Business scopes:
1. Research, develop, produce and sell: Pad printer, Screen printer, Heat transfer machine, Hot stamping machine, Pre-post printer(UV curing machine, Flame treatment machine, UV exposure clich machine, Coating emulsion machine, Silk mesh tighten machine, Screen stencil drying oven, Silk screen frame exposure machine, Steel pad plate oven, IR oven, IR drying tunnel conveyer );
2. Trade and authorize for the patent of the above products, Services about design, testing, maintenance, and technical consulting;
3. Valet Manufacture: flame treatment gun, screen frame, Screen Stencil, pad, steel plates, film, Drying Racks Trolley and the relative moulds, jigs and parts;
4. Sale by proxy the relative supporting materials: printing ink, Ink Adjustment tool, Rubber pads Materials, Pad Printing Blade, ink cup and ring, Pad holder, ink roller, Screen Silk, Aluminium Screen Frame, Rubber Squeegee, sensitive emulsion, Emulsion Coating tool, Etching powder, Sensor Switch, Tension meter, Spraying gun, Circuit board, Inkwell, Solenoid Valve, hot stamping foil, High temperature tape, Stamp plate, Silicon rubber roller, Heat transfer paper, High temperature glue, UV lamp, UV lamps Trigger etc;
5. Our engineer can communicate with clients at anytime in English, design development use UG, Proe, Autocad, Mastercam;
6. Import and export business of the above items.
Payment:L/C,Western Union,Paypal,Unionpay.
Welcme to contact us if you have any question.
