Paint-Free Board Woodworking Machinery Fully Automatic Edge Banding Machine for Ecological Board

Product Description

Product Description

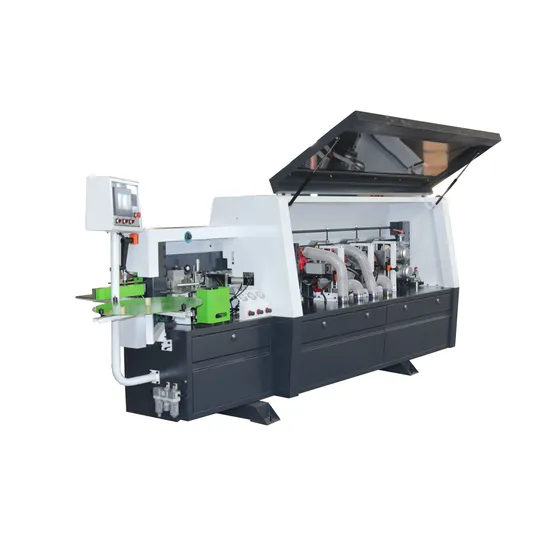

368 Automatic Edge Banding Machine
Specific functions: preheating, gluing, edging, pressing, cutting, front and back aligning, rough trimming, fine trimming, blowing and hanging, polishing.
Detailed Photos
Product Parameters

Automatic edge banding machine
Model	LD368	LD468	LD468J
Total power	8KW	9kw	12KW
Overall size	4600×1100×1600mm	5500×1100×1600mm	6500×1100×1600mm
Running speed	12~20m/min	12~20m/min	12~20m/min
Panel thickness	10~60mm	10~60mm	10~60mm
Thickness of edge banding	0.4~3mm	0.4~3mm	0.4~3mm
Panel width	≥80mm	≥80mm	≥80mm
Working air pressure	0.8MPa	0.8MPa	0.8MPa
Function	Gluing,front and back flush, Rough trimming,Finishing, Scraping,Polishing	Gluing,front and back flush, Rough trimming,Finishing, Imitation tracking,Scraping,Polishing	Pre-miling,Gluing,front and back flush, Rough trimming,Finishing, mitation tracking,Scraping,Polishing

After Sales Service
Company Profile

Shandong Laser Intelligent Equipment Co., Ltd. was established in 2011, spe- cializing in the production of various CNC engraving machines, CNC cutting machines, stone machines, various woodworking machinery and other mechanical equipment. With engaged in import and export
business for 15 years, and has export qualifications such as EU
CE certificate and lso9001 management system certification.
The factory covers an area of 15,000 square meters.
we have a complete product design and development,
production, sales and after-sales service team, which can provide
customers with high-quality services. All parts of the machine are
made of well-known brands at home and abroad, and all products of
the company have undergone strict quality inspections to ensure
product quality.The products have been sold to more than 80
countries and regions, and have won unanimous praise from
customers.
Packaging & Shipping
FAQ
Q1. Delivery time of CNC router machine?Standard size and configuration CNC router machine delivery time is 5 working days
Customized series machine delivery time is 7 working days
4 axis and 5 axis series machine delivery time is 10-20 working days.Q2. Can you sent machine to my home?Yes, Usually we ship to port, but also delivery door to door. we have cooperation long time shipping agent, famous team in China, them can offer FCA,FOB, CIF, DDU, DDP priceQ3. This is the first time to use cnc router machine,is it easy to operate?Yes, it is easy, if you can draw with software, the machine operate is no problem, because we will support:
1).English guide video and instruction book are sent to you free together with the cnc router.
2).Free training course in our factory. Engineers are available to serve overseas but all the expense needs being paid by your side
3).We have our own after-sales service team,24 hours technical support by calling, video and email.Q4.Can you support customize?4).Yes, we support customize machine logo color, size, volitage and so on.
