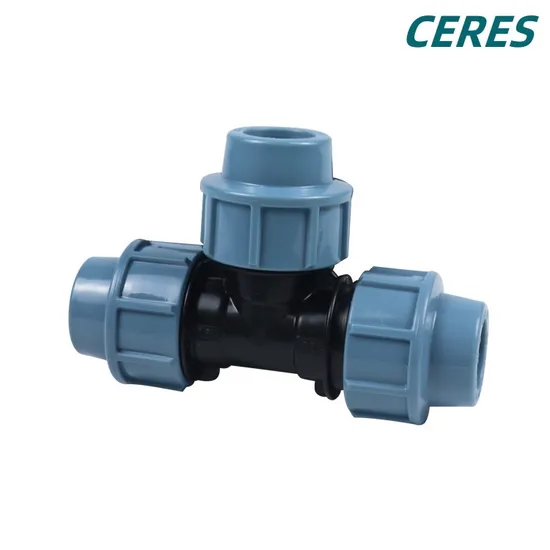

Hot Sale Pn16 90 Degree Tee PP Compression Fittings for Water Supply

Product Description

Hot Sale Pn16 90 Degree Tee PP Compression Fittings for Water SupplyProduct DescriptionCERES PP compression fittings line has been designed for the conveyance of fluids at high pressures, for water conveyance, for potable water distribution and applications in the thermo-hydraulic sector. This product line is accordance with the most severe international standards in terms of mechanical properties and alimentary compatibilities.

Part	Material
Body(A)	Polypropylene co-polymer(PP-B) of exceptional mechanical properties even at high temperature.
Blocking bush(D)	Polypropylene
Nut(B)	Polypropylene with dye master of high stability to UV rays andsolidity to heat( S grade according to standard DIN54004)
Clinching ring(C)	Polyacetal resin(POM)with high mechanical resistance And hardness
O Ring gasket(E)	Special elastomeric acrylonitrile rubber(EPDM) for alimentary use
Reinforcing ring	AISI 430 (UNI X8Cr17,W,nr 14828)Stainless steel for female threads from 1"to 4"

WORKING PRESSURES
CERES PP compression fittings allows the maximum working pressure(PN~PFA*) of 16 bar(UNI 9562) for diameters from 16mm to 63mm and PN10 bar for diameters from 75mm to 110mm, at the temperature of 20°C.Maximum allowable working pressures related to the duration of pressure and temperature.FEATURES
1. Light weight, easy to load and unload
2. Good chemicals and drugs resistance
3. Small resistance to fluidity
4. Strong mechanical strength
5. Good electrical insulation
6. Water quality unaffected
7. Simple installation
APPLICATION
1. Structure Engineering
2. Water supply system
3. for Agriculture Irrigation
Reference StandardsDimensions: UNI 9561
Working Pressure: UNI 9562,DIN 8076-3,ISO 14236,BRL-K03.
Polyethylene(PE)pipes: UNI 7990,DIN 8074,UNI EN 12201
Threads: UNI ISO7/1,UNI EN 10026-1,ANSI ASME B1-20.1
Flanges: DIN 2501-1,UNI EN 1452-3.IS 7005-2
Product Parameters

PN 16 type	Code	Size	Weight (g/pc)	PCS/BAG	PCS/CTN
Equal tee	JFV-02190	20mm	111	10	140
		25mm	168	6	90
		32mm	251	4	52
		40mm	460	2	32
		50mm	748	0	18
		63mm	1350	0	9
		75mm	1663	0	7
		90mm	2383	0	4
		110mm	4238	0	2

Working Pressures
CERES PP compression fittings allows the maximum working pressure(PN~PFA*) of 16 bar(UNI 9562) for diameters from 16mm to 63mm and PN10 bar for diameters from 75mm to 110mm, at the temperature of 20°C.Maximum allowable working pressures related to the duration of pressure and temperature.

n	PFA*	PMA*	PEA*
16-63	16	20	24
75-110	10	12.5	15
Temperature(°C )	Da-10a25	Da+26a+35	Da+36a+45
16-63	16	20	24
75-110	10	12.5	15

Company Profile
Our company is a professional facility agriculture and water-saving irrigation installation and design company. Our team has 2 chief engineers, 6 engineers, 6 project managers, and 12 techniciansUndertake all kinds of irrigation, water and fertilizer integration smart digital agriculture, agricultural Internet of Things project engineering design and construction. And We have4000 square meters of quality inspection workshopWe Provide one-stop packaging service for projects, welcome to call.
FAQ
1.What is your MOQ?
Our MOQ is usually 5 CTNS for size from 20-50mm.
2.What is your delievery time?
The time of delievery is around 30-45days.
3.What is your payment terms?
We accept 30% T/T in advance,70% before shipment .or 100% L/C.
4.What is the shipping port?
We ship the goods to Ningbo or Shanghai port.
5.How about the samples?
we could send you the samples for free, and you need to pay the courier fee.
If there are too much samples, then you also need to undertake the sample fee.
