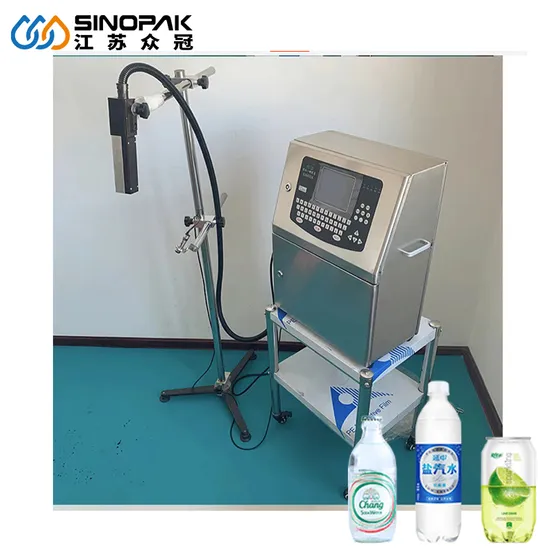

Ink Jet Printer for Pet Drinking Water Bottle Logo Printing Marking Engraving Numbers Coding
| US$3,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LS1
Laser Visibility
Visible
Applicable Material
CO2
Cooling System
Air Cooling
Technical Class
Continuous Wave Laser
Laser Wavelength
CO2 Laser
Laser Classification
Free Electron Laser
Type
CO2 Laser Marking Machine
Function
Expiry Date and Barcode Coding or Qr Code
Average Lead Time
5-7 Days
Multilanguage
Russian, Persian, English.Arabic
Interface
Ethernet, USB, RS232, Multiple Definitions I/O
Transport Package
Wooden
Specification
1221*490*625mm
Trademark
SinoPAK
Origin
China
HS Code
8486204900
Production Capacity
1
Packaging & Delivery
Package Size
130.00cm * 80.00cm * 100.00cm
Package Gross Weight
60.000kg
Product Description
Specification
| Pulsed CO2 Laser | 10W | 30W | |
Input power | Input voltage: AC220V Frequency: 50 Hz Input power: ≥1000W | ||
| Wavelength (nm) | 930-1064 | 930-1064 | |
| Normal average output power (W) | ≥10 | ≥30 | |
| Single pulse energy(MJ)@20khz: | 1 | 1@30kHz | |
| Beam quality | <1.8 | <1.8 | |
| Beam Diameter(mm) | 6~8 | 6~8 | |
| Pulse duration(ns)@20kHz | <120 | <120@30kHz | |
| Pulse repetition rate(kHz) | 20~60 | 30~60 | |
| Output power tunability(%) | 10~100 | 10~100 | |
| Output fiber cable length(m) | 2.0 | 2.0 | |
| Power consumption(20ºC)(W) | 200 | 300 | |
| Modulation frequency | 20kHz ~ 80kHz | ||
| Dimension WDH (mm) | 250*100*160 | ||
| Marking range | 160*160mm 110 * 110mm 70 * 70mm (optional) | ||
| Maximum scanning speed | 0-150m / s | ||
| Scan accuracy error | <2 mrad | ||
| repetition error | <5 μrad | ||
| Minimum line width | 0.02mm | ||
| Line depth | 0.04 ~ 0.2 mm (depending on material) | ||
Field Focal Length (optional) | F = 100mm Effective Focus Scanning Range: 70 * 70 mm F = 160mm Effective focus scanning range: 110mmX110mm | ||
Working environment | Should work in dust-free, smoke-free, non-corrosive gas work environment Temperature: 0 ~ 42 ºC Humidity: 45 ~ 85% | ||
| Cooling way | Forced air cooling ,( 3 fans in the laser, each fan is 75.2 CFM ) | ||
| Safety | over-current protection; over-temperature protection; over-voltage protection | ||
| Approximate weight | 70~90kg with the wooden case | ||
Controller | Window IPC i32.5G, 500G, 2G, 19-inch LCD(Static marking) Touch screen (fly marking) | ||
| Language | Chinese English(touch screen) | ||
FEATURE 1) Compact design and fast installation 2) Easy to be integrated at any position of the production line 3) More further environmental protection and energy saving 4) Un-contact processing, environmental protection, lower power, fast laser marking and cost economy 5) Easy to use and Excellent compatibility 6) Simplicity of operation, easy to use, powerful anti-jamming performance, enough memory, multiply input and output interface, use with automatical anti-counterfeit and anti-disorder system 7) Adopt import laser, more safer and faster 8) The laser printer needn't consumable APPLICATIONS Food, Beverage, Tobacco, Electronic Component, Pharmaceuticals, ceramic wares, Automobile part, Electrical Wire, Cable, Arts and Crafts, Rubber
