Logistics and Warehousing Industry Dock Leveler

Product Description

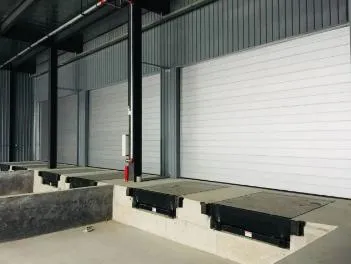

Hydraulic Dock Leveler(Connects Truck And Platform For Easy Loading And Unloading)

Hydraulic Dock Leveler
The dock leveler can effectively compensate for the height diference between the truckand the building platform. When the truck stops near the platform and stabilizes, themain panel and the slab are lifted up to the truck compartment board by starting theelectro-hydraulic system. The handling vehicle can directly enter the compartment forloading and unloading operations, safe and efficient. In the structural design andmaterial selection process, the safety of the user is always the first priority. The actuacarrying capacity of the hydraulic dock leveler produced is greater than the load-bear-ing regulations in the relevant international standards

Product Details

Part Name	Configuration
Platform size	(W*L*H) 2000*2000*500(mm)
Foundation size	(W*L*H) 2030*2000*510(mm)
Load	Dynamic load 6800kg/ static load 13600kg
Platform color	Grey (customizable)
Countertop panel	Thickness 8mm, antiskid pattern steel plateof Baosteel
Lip	Thickness 16mm, whole sheet of antiskidpattern steel plate
Frame under countertop	10 pieces of C steel
Hinge	Thickness 10mm
Connecting shaft	Diameter 28mm
Hydraulic system	Dedicated hydraulic unit, motor power 0.75kW 380V50HZ
Control system	Control system: CPU integrated control system with screen displaying running status, running times, fault code and interlock, linkage expansion function; One-Key operation, power shut off
Hydraulic cylinder	Adopt design of main cylinder (lift of main panel) and auxiliary cylinder (flip of lap plate); concise arrangement of hydraulic pipelines,Adopt Japanese NOK seals
Hydraulic tubing	Imported Goodyear brand, pressurevalue 220 bar
Foot guard	One piece thickness 1.5mm
Settling time	30seconds (any position to corresponding maximum limit range)
Adjustable range	+350/-300mm
Operation temperature	+50°C~-25°C
Painting	Surface treated by pickling, derusting and sandblasting, and adopted automatic spraying anti-rust paint, primer and finish paint layer thickness 0.1mm
Hydraulic tank capacity	5L
Hydraulic oil pressure	120bar
Lip self-lock	With, standard configuration
Maintenance support bar	With, standard configuration
Safety hydraulic lock valve	With, standard confiquration
Adjustable speed hydraulic valve	With, standard confiquration
Bumper block	One pair,250*300*100mm
Electric cabinet	IP55

FAQ
Q1: What is the minimum order quantity for the product?
A: There is no minimum order quantity for our products. We also recommend using wooden crates for protection during shipping.

Q2:Sizes and application scenarios of various products in our factory?
A:We will provide customers with professional suggestions and drawings based on their needs to provide them with the best solutions.

Q3:Can I get industrial door samples for quality checking?
A: There are samples.

Q4:How do I get a price for the product I need?
A: Please give the exact size and quantity of the product you need. We can provide you with a detailed quotation plan according to your requirements.

Q5:What payment terms will you accept?
A: We usually accept T/T.

Q6:We would like to be your agent in our area. How to apply for this?
A: We very much welcome you to become our agent. Please send us your ideas, company or personal information via email. let's work together.

Q7:Can you send me the price list?
A: Yes, the product is not standard, the size is customized according to your requirements, I can provide regular size quotation.

Q8:Is it convenient to visit your factory?
A: Yes, our factory is only 2.5 hours drive from Shanghai Airport. Here you are welcome to visit our factory and taste local food.
