Furnace Atmosphere 3-Gases Analyzer for Super Carb

Product Description

Furnace Atmosphere 3-Gases Analyzer
Function:
*Measure the contents of CO, CO2, CH4 (optional O2) in the atmosphere,
and calculate the carbon potential;
*PF and other process values Diagnose the atmosphere in the furnace and greatly reduce the influence of human factors on the carbon potential measurement;
*Provide overall records to meet the quality management requirements of heat treatment CQI-9 for controlled atmosphere equipment;
*Provide factory calibration service and report & Lifetime maintenance.

Can be applied to various atmospheres:

Endothermic atmosphere;

Nitrogen/Methanol

Pure Cracked Methanol

Super Carb

Exothermic

Sintering Process Atmosphere and Annealing Process Atmosphere

Features
1:7-inch color high-definition touch screen, friendly operation interface, Chinese and English optional;
2: Adopt German customized high-precision sensor; Measuring range: CO: 0-30%; CO2:0-2%;CH4: 0-15% (optional, larger range); Measurement accuracy: ±1% of CO, CO2, CH4 full scale;

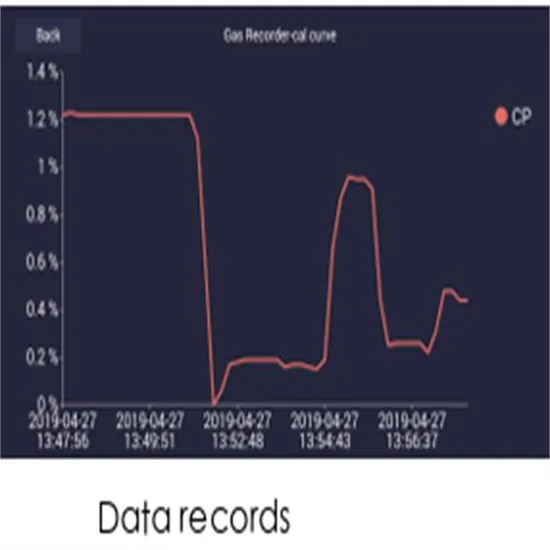

3:Built-in data recording and analysis function;
4:Embedded carbon potential calculation software;
5:Built-in high-quality air pump and large-capacity lithium battery
6:Built-in multi-stage filtration system to ensure the quality of the sample;
7:Built-in calibration function;
