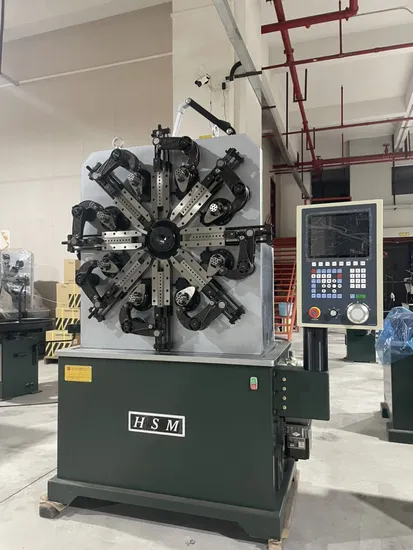

Dongzheng Hsm-CNC40 High Wire Feeding Precise Stable Torsion Spring Machinery for Medical Product

Product Description

Specification

wire size	1.8-4.5mm
wire outside diameter	max:70mm
wire feeding speed	0-70meter/min
z-axis motor	1kw
cam motor	4.5kw
wire feed motor	4.5kw

Product Description
Dongzheng 40 CNC universal machine, referred to as 40 spring forming machine, can be used to produce flat wires, steel wires, iron wires and other products with wire diameters of 1.8-4.5mm. Commonly used products include various springs, battery springs, and touch springs. , special-shaped springs, single and double torsion springs, tension springs, scroll springs, circlip springs, snake springs, various types of clips, auto parts, mobile phone accessories, handicrafts, etc. The product has a wide range of applications.
HSM-40 spring forming machine is 1 meter long and 12.20 wide meters, 19.1 meters high and weighs about 2000kg. The machine adopts double-panel mode, and the power input of the machine is 380V 50HZ. The machine is equipped with 3 axes, a 4.5kw motor used in the wire feeding part, a 4.5kw motor used to control the cam rotation, and a 1kw motor used to control the core rotation. The fastest wire feeding speed is 110 meters per minute, and the cam has a maximum The rotation speed is 80 rpm. The machine can be used with probes and cylinders. Each machine is equipped with a 300kg automatic wire feeding machine for online use. Each machine is equipped with a CNC computer to control the operation of the equipment. The computer can write different programs to produce different products. The programs can be stored for next use. The computer can calculate the production quantity, production speed, remaining production time, etc. data.
Thanks to our clients treasurable suggestion. Our spring forming machine has been widely praised in the market after continuous optimization of technology and process. And we will keeping improving our products. High product precision, stability, high wire feeding precision, durability are the most popular features in our product Samples
More Photos

Order Process
Why Us
1. We are in spring machine industry area 30 years
2. Our general manager is the professional mechinical engineer, he is pragmatism and self-discipline man and he is technique guy instead of business guy, he manage all HSM products' design and improve them little by little in more than 30 years.
3. We are listen to our customers, we treat our clients comments as treasurement, and we will continuously refactor our products base on clients good suggestion.
4. We have very good reputation in Guangdong, most of our customer are repeat customer. Our machine price is higher, but machine quaility is higher too
5. Specail material used, machine can be used super long time. And longer time machine used, the machine is more easier to use
6. Every machine is restrictly checked before shipping
7. Everyone in company just like a big family. Quantity is guaranteed
Company Profile
Dongguan Dongzheng Machinery Co., Ltd. is a professional company specializing in the production of spring machinery for more than 20 years. Company has a wide range of products, mainly including 20 cam spring machine, 40 cam spring machine, 50 cam spring machine, 50 wire rotatable cam spring machine, 25 camless spring machine, 45 wire rotatable camless spring machine. 08 spring coiling machine, 30 spring coiling machine, 2D wire bending machine, conveyor belt specialized machine, latch machine, spring winding machine. Machines can produce all kinds of flat wires, compression springs, tension springs, torsion springs, wire forming products and other Special-shaped springs. The machines are equipped with 90kg to 500kg wire feeding machines. All machine parts are fully developed by us. The motor deceleration part adopts a unique mechanical design and is patented. The machinery adopts practical design, making the machine simple and quick to install, and also reduces the difficulty of debugging and the technical threshold of debugging.
More importantly, it shortens the machine debugging time when debugging a product. The slider used in the machine is made of special materials, which has good rigidity, strong wear resistance, and accurate and stable on production. Each machine is equipped with a CNC computer. The computer is easy to operate, supports multiple languages, and automatically detects the machine health, automatic alarm and other functions. Dongzheng Machinery has a long history. The founder is a senior mechanical designer who advocates pragmatism and strict self-discipline. He founded the company in 1996 and named it "HSM" meaning the grand cooperation. Later renamed Dongzheng and switched the "HSM" as a brand under Dongzheng. Our product has the characteristics of high wire feeding precision, stable and precise molding action, and novel appearance.
In the fiercely competitive market, the company will continue to provide excellent quality, reasonable and competitive prices, accurate delivery time and excellent customer service to meet the rapid development of market demand.
Dongzheng Machinery Company is located in the world-famous international manufacturing city "Dongguan, Guangdong" with a beautiful environment and convenient transportation. At the same time, the company built a branch in Jiangxi in 2019. It has invested and completed the factory construction in Jiangxi. The company name is "Jiangxi Zheng Dong Intelligent Technology Co., Ltd." We believe the new branch will strengthen the company's future. It laid a solid foundation for the company's subsequent long-term development. Adhering to the tenet of "keep improving quality and pursuing perfection", Let us know if you have any question and look forward to cooperating with you.
