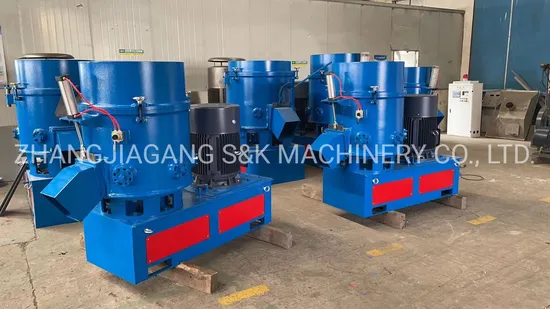

Washing Crushing Clean Film Woven Bag Fiber Agglomerator Densifier to Raw Materials

Product Description

PP PE film woven bag PET fiber Agglomerator plastic reycling machine pellet making machinery
Description:
Application&Features:The agglomerator(plastic film granulator) is a kind of waste thermoplastic thin films, and wall thickness is less than 2 mm of products can granulated immediately. It can be wastes or thin film of soft polyvinyl chloride (PVC), high and low pressure polyethylene, polypropylene and polystyrene, other thermoplastic plastic on aggregate, also on foaming polystyrene abandoned products for granulation. Working principle:Putting the waste into machine pot body make the material be quickly cut by the high speed rotating turn the blade and the fixed blade shear ,then the material along the pot body wall by the knife dish centrifugal force function ,at the same time, the material turning up and down by paddle and from all around to move towards to the center of the pot body. The friction of material itself and friction of pot wall and blades produce much friction heat under the high speed, making the materials temperature rises to the half-plastic condition and connects to small lump. Before the materials will block, advanced preparation quantitative water will all spray to the material. The cold water touch the hot materials will gasify and take out the surface heat soon , making the surface of the materials cool quickly and avoid blocking, then after crushing effect between rotary blade and fixed blade to cut into particles(irregular size materials). During the crushing, Also may join the appropriate color pigments according to needs. 1.The PP/PE Plastic Agglomerator is used for fast recycling of waste films,woven bags. 2.The Machine can quickly granulate used thermoplastic film or the thermoplastic products which thickness less than 2mm. 3.It's applicable to the agglometating of soft polyvinyl chloride, HD/LD polyethylene, polypropylene, polystyrene and other used thermoplastic products or film. 4.The granules produced by the plastic agglomerator can be supplied to pelletizing machine for further granulating or just fed to extruer and injection machine. This agglomerator is mainly used for cutting and recycling thermoplastic film, soft polyvinyl chlorid (PVC) waste chemical belt etc, such as garbage bags, carry bags and milk pouches It is for for augmentation of the bulk density of the LDPE, HDPE , PP , BOPP, PET film & bags flakes.Technical specification

NO	Parameter	Unit
1	Cubage	300L
2	Effective Cubage	225L
3	Rotary speed of main shaft	800 r/min
4	Capacity	About 200kg/h
5	Power	55KW
6	Weight of machine	About 1800kg
7	Dimension	2*0.85*1.6m(length*width*height)
8	Rotary blade	2 pcs
9	Fixed blade	8 pcs
10	Inner pot material	Stainless steel
11	Material of blade	9Crsi
12	Way of feeding	Manual
13	Way of discharge	Pneumatic way

Our Services
Pre-sale :
We provide presales service in various forms, for example, making investment budget,manufacturing planning, etc. so that customers make a reasonable plan with less cost.
• Investment budgeting: We provide services of product profit analysis, recommendation of machine and auxiliary equipment and relevant budgeting, human resources allocation and budgeting.
• Plant Planning: We provide the mounting dimension of the equipment base,design of equipment layout, workshop ventilation, water transmission etc.
• Offer information of peripherals

In-sale :
• Detailed design of lay-out that is the position of the procession
• Technological information of provided products
• Schedule about design,manufacturing and installation
• Working & Producing progression
• Training course for the technician so that the installation is safe and standard
After-sale :
• For customers buying our products, we provide them free training so that they can use and maintain the machine independently.
• We will answer customer's question on technology in time. If needed, we will offer on-site guidance and assistance.
• We can provide free technical guidance if customers need new equipment, add or rebuild equipment.
Competitive Advantage:
1. Installation and test running
We will invite customers to check the machine before shipment. And if the customer requests us to guide installment and test running in his factory, we will send our engineer. And the customer should pay for engineer's ticket, visa, room and board, $80 per day for one people as allowance.
2. Quality guarantee
We normally guarantee machine quality for one year to key components of the machines.
