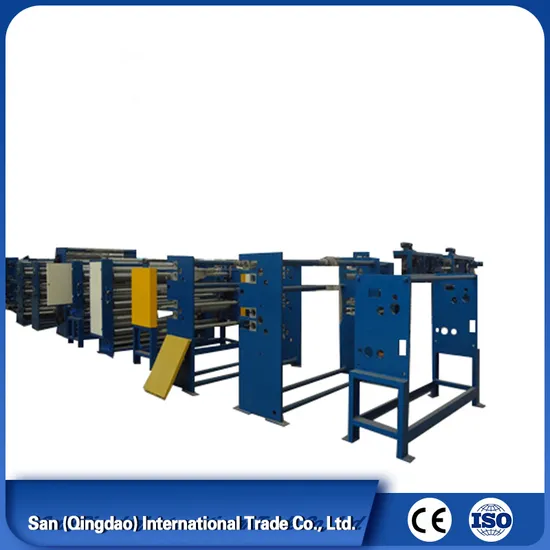

Factory Outlet Automatic High-Speed Honeycomb Cardboard Machine

Product Description

Our products
Basic parameters
Core paper(width*roll diameter)=(1600mm*Φ1200mm)
Core paper weight:110g/m2-140g/m2
Cover paper(width*roll diameter)=(1300mm*Φ1200mm)
Cover paper weight: 180g/m2-400g/m2
finished sheet thickness: 8-80mm
finished sheet length: 500-3000mm
production speed: 0-15m/min
heating: electric heating, hot air circulation
equipment installed power: about 170KW
equipment total length: 102 meters

Specifications For FX1300 Automatic Honeycomb Cardboard Production Line
1	Model	FX-1300
2	Main material	corrugated paper, kraft liner board, tea paperboard and so on
3	Width of continuous core	1600mm
4	Width of finished panel	1300mm
5	Thickness of core or panel	8-80mm
6	Production speed	0-15m/min
7	Total power	170kw
6	Adhesive	white latex, starch glue.
7	from paper goes in to cardboard goes out, it is all completed in a fully automated production line. Only 2 to 3 operators needed, high paper utilization, advanced technology.
8	this device is equipped with two sets of glue roller that can produce two different honeycomb pore size cardboard use two cladding.
9	use man-machine interface, PLC control, high degree of automation. Greatly improve production efficiency.

Other products
Why choose us
About us
San (Qingdao) Machinery Co., Ltd was established in March 2005, based on the tenets of providing professional services wholeheartedly, supplying trustworthy and high efficiency products, helping employees build strong selves and live a prosperous life, and contributing to the development and progress of human society. In conformity with the management philosophy of being responsible, leading and realistic, "San" people are summing up experience and innovating constantly in technology, production, sales and service, and sparing no effort to be a leading integrated service provider for paper machines and paper converting machines in China.
Production workshop
Our qualifications
Packaging & transportation
FAQ: Q1: What's your warranty policy?A1: For the machine,we offer one year warranty.If any quality problems occurred under normal condition during this period ,we will take on the costs of maintenance and replacement and other related cost.
Q2: How to find the matching accessories or wearing parts of the machine?
A2: We offer free replacement for wearing parts during the warranty period. Clients can also get the parts from us with favorable price if it is out of the warranty.
Q3: Do you have technical instruction if I buy your product?
A3: Please read the user manual carefully for your reference, we have detail instruction on it. If your problems still can not be solved, welcome to contact us for help.
Q4: What is your overseas service?
A4: We will provide high quality overseas service ,our technical staff will be able to provide you with technical support ,for you personally to overseas assembly and test equipment.
Q5: How to get raw material or auxiliary material for the machine?
A5: Our company has over 10 years experience in this industry, we have accumulated various contact information of upstream & downstream firms in fields of raw material,auxiliary material and package for the products. We believe that our professional team can always offer you the best solutions.
