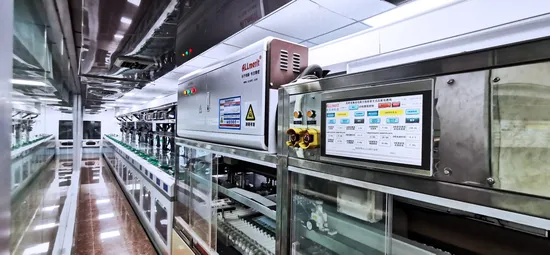

High Precision Intergrated Circuit Lead Frame Platen Type Silver Plating Equipment

Product Description

Product Description

Integrated Circuit Lead Fream disc selective silver plating equipment
Speed: 0.2-2 m/min
Channel: 2-6
Accuracy: ±0.075mm
The way of unlaod and offload: Strip to Strip
Location mode: Mechanical position/image recognition and localization
Applicable product width: 25-110mm; thickness: 0.1mm-0.5mm Length:170mm-300mm
This device is for QFN ,DFN(Pachage Size 2.5X2.5 - 12X12) ring plating,double ring plating and other high-precision plating process; Other types of high-density IC lead frames such as SOP,QFP,SOT,DIP and so on.

ADVANTAGE
1, 4 channels dislocation arrangement, and the operation does not interfere with each other.
2, The part of silver plating adopts the internal cavity reflux mode, there is no bath splash and steam generation.
3, The materials of whole machine frame all use 50-100mm SUS316L, easy to clean. And it has sufficient strength, can ensure the stability of the equipment, reduce the risk of pressure deformation.
4, Adopts the whole line tunnel operation structure, to avoid the roller type of Japan and South Korea's equipment caused the silver surface scratching, pollution and other problems .
5, The action structure of discharge, receiving, silver plating part is complex.
6, Many advantages are the first time to achieve and use at home and abroad.

Component
Certifications
Our Customers
Company Profile
FAQ
FAQ
Q:Are you manufacturer or trading company ?
A:We are a professional manufacturer of large-scale research and production of semiconductor wet process equipment. We have a professional research and development team and production and assembly workshop, which can ensure quality and after-sales service.
Q:What is the width of the equipment ?
A:The width of the equipment is about two meters.
Q:How long is the warranty ?
A:The warranty period of our equipment is one year. One-step service, professional engineers to follow up to solve the problem.
Q:What is the packaging of the equipment like? What is the delivery method?
A:Standard export fumigation sign wooden box packing or delivery by land or sea.
Q:how to install and debug the equipment after its arrival ?
A:After the equipment is issued, we will arrange a senior installation and debugging team to the your company to complete the installation,debugging,training,etc.,and assist your company in the early mass production.
