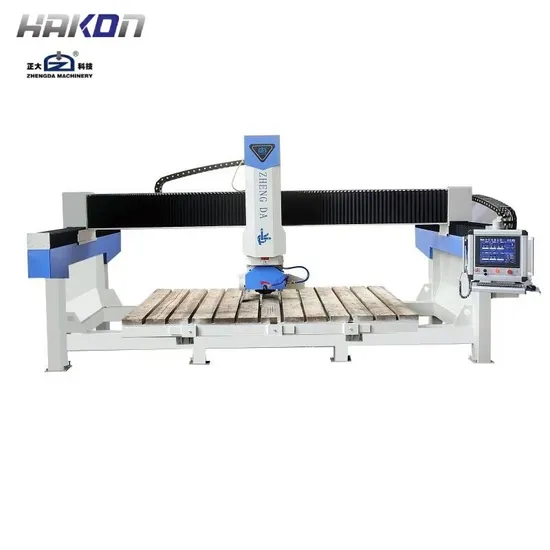

5 Axis Porcelain Marble Granite Bridge Cutting Machine

Product Description

The bridge cutting machine consists of crossbeam, spindle box, lifting components, worktable parts, PLC control system, hydraulic system ,infrared ray unit and automatic lubrication system
Feature: 1,crossbeam is made of cast iron, it will be more durable and stable.
2,Worktable can tilt up 0°-85°
3 .Machine head can rotate 0°-360 °, and tilt from 0°-90° (can stop on any degree).
4. This machine can do surface profiling .
5, AC contactor ,inverter,breaker,touch screen and PLC adopt famous brand. human-machine interface is easily operated and fully automatic processing as operator entered parameters
6. This is all-in-one machine with good stability and small floor space.
Detail information: MAJOR TECHNICAL PARAMETERS

ITEM NO	ZDH350-5
PROCESSING SIZE	3200*1900*50MM
DIAMETER OF BLADE	ø260-350MM
TOTAL POWER	22KW
OUTLINE DIMENSION	550*2800*2960MM
MAIN ENGINE POWER	15KW
WEIGHT	4000 KGS

Service:
Pre-sale:
(1)regarding your demands , the best suitable machine will be recommend you . the customized machine also support.
(2)regarding your country requirements, some certificates will supply to help you clearance. Like CE,CO, FORM-A,FORM-B,FORM-F,original certificate signed by Embassy.etc.
(3)all the machine will be tested before delivery, and we will take the video and pictures to you.when you receive it , it can work directly.
(4)You could visit the factory at any time!
After-sales:
(1)we will supply all the control system and software operate manual,so you can operate the machine easily refer it.
(2)All the machine problem , you can ask me any time , we will help you solve by online way ,or tel,email,remote video at first time ,if all these can't solve your problem , our engineer will go to your factory to help you on spot.
Welcome to our factory for learning how to operate machine ,one professional engineer will together with you , this service for free.
FAQS:
1) Payment:
TT 30% for placing an order, we start to produce the machine→70% (balance payment)before shipment
2) Delivery time:
The machine can be shipped within 25 workdays when received payment.
3) Guarantee period:
The machine is guaranteed for one year. The man-made accident and The man-made accident and the Lightning , Flood ,earthquake , wrong voltage are not covered by the warranty.
4)How about our service?
1.Six engineers are special for installation service for oversea customer. If customer needs our installation service,we are available to dispatch any time.
2. Technical support 24 hour on line.
