Intermediate Drawing Machine for Copper Wire
| US$100,000.00-300,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
HT. SD250.01.17
Usage
Wire
Metal Material
Copper
Outlet Diameter
0.4-1.8mm
Max.Inlet Wire Dia.
3.0-3.5mm
Block Dia.
250mm
Max. Number of Block
17
Certification
ISO, CE
Condition
New
Line Speed
Max. 1800m/Min
No. of Dies
17
Transport Package
Pallets
Specification
HT. MD150.01.25.04
Trademark
JOC
Origin
China
HS Code
84794000
Production Capacity
100 Stes
Product Description

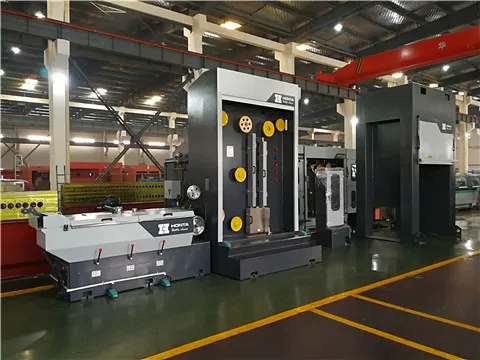

Intermediate Drawing LineProduct Overviews :
High-precision grinding helical gear transmission, forced oil lubrication control, low noise. Full immersion lubrication design.
DC annealing control, annealing automatic tracking speed. Ensure that the elongation of copper wire is stable and uniform.
The take-up tension PID is automatically adjusted to ensure that the tension during the wire drawing process is always stable.
Smaller compression ratio design is more suitable for the production of large-size conductors, such as the production of wire and single conductor.
Inlet dia. :3.00-3.50mm
Outlet dia. :0.40-1.80mm
No. of wires :1
No. of dies :17
Machine speed :Max.1800m/min
Technical Specification :
| Machine type | HT.SD300.01.17 | HT.SD250.01.17 |
| Material | Cu,Cu Alloy | Cu |
| Machine speed | Max. 1500m/min | Max. 1800m/min |
| Inlet dia. | Max. 3.50mm | Max. 3.00mm |
| Outlet dia. | 0.80-1.80mm | 0.40-1.60mm |
| No. of dies | 17 | 17 |
| Drawing capstan dia. | 300mm | 250mm |
| Finished capstan dia. | 300mm | 250mm |
| Annealing current | Max. 3500A | Max. 2000A |
| Annealing power | Max. 270Kw | Max. 170Kw |
