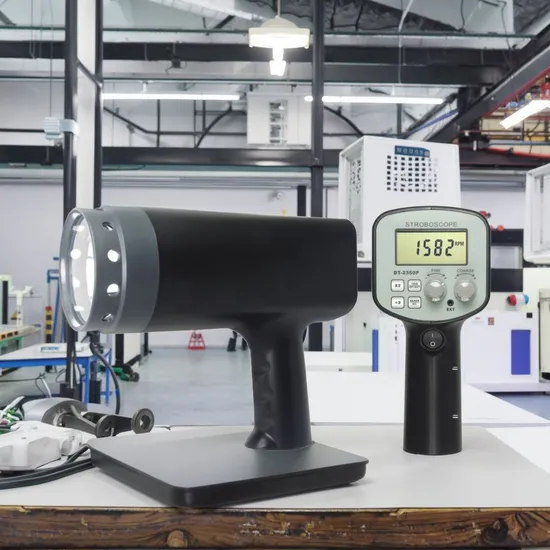

Dt-2350PA Dt-2350pb Dt-2350PC Dt-2350pd Dt-2350PE Stroboscope Meter Dt-2350p Serials

Product Description

DT-2350PA DT-2350PB DT-2350PC DT-2350PD DT-2350PE Stroboscope Meter DT-2350P Serials
Features:
1. Digital display gives exact reading with no guessing or errors; Wide measuring range and high resolution.
2. Automatic stop flashing to save electricity and improve flash tube lifetime.
3. Internal / external triggering fast conversion; x2 and ÷2 button for fast adjustment.
4. Use photoelectric signal while external triggering, achieve automatic tracking function of the pattern.
5. Use microcomputer technology, emerging technologies, anti-jamming technique and other advanced technology, it can measure the rotative velocity without contacting the object.
Product Description Model & Range:
DT-2350PA : 50 ~ 12,000 FPM
DT-2350PB : 50 ~ 40,000 FPM
DT-2350PC : 50 ~ 20,000 FPM
DT-2350PD : 50 ~ 30,000 FPM
DT-2350PE : 50 ~ 2,000 FPM (Fit for Print and Textile)
Specifications:
1. Display: 10mm (0.4") LCD (Liquid Crystal Display)
2. Parameters Measured: FPM (Flashes Per Minute)
3. Ranges : 2350A: 50~12,000 FPM
2350B: 50~40,000 FPM
2350C: 50~20,000 FPM
2350D: 50~30,000 FPM
2350E: 50~2,000 FPM (Model E is specially designedfor Printing and Textile industry)
4. Resolution: 0.1FPM (50~999.9 FPM); 1FPM (over 1000 FPM)
5. Accuracy: ±(0.05%n+1d)
6. Sampling Time: 0.3 seconds
7. External trigger level: 3~24V
8. H/L range: Flashing light is much brighter at low range than at high range.
9. Strobe Flash tube type: Xenon lamp
10. Operating conditions : Temp: 0~40ºC; Humidity: <85% RH
11. Power supply: 220V A.C. (Default); 110V A.C.
12. Size: 215x85x180mm (8.5x3.3x7.1 inch)
13. Weight: about 1000g

Stroboscope Meter
