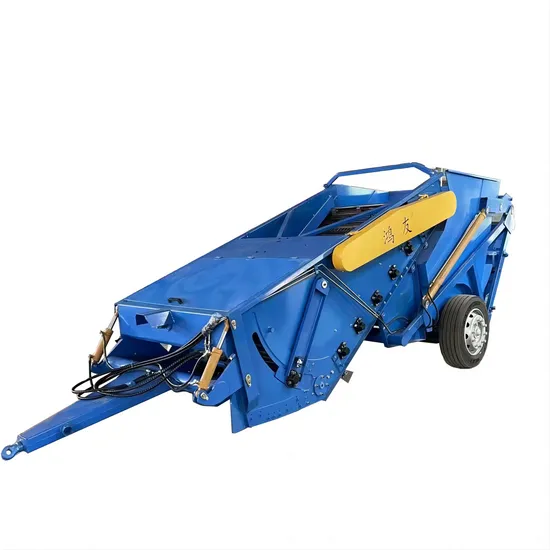

1600mm Rock Picker for 150HP Tractor

Product Description

Product Description
Automatic soil loading stone picker machine used for farmland with 12JS-160
The main function:
A stone picking machine, also known as a stone picker or rock picker, is a specialized agricultural machinery designed to remove stones, rocks, and debris from fields, improving soil quality and preventing damage to farming equipment during subsequent operations.

Detailed Photos
A stone picking machine is a self-propelled or tractor-mounted device that systematically collects stones and other unwanted objects from the soil's surface. It typically consists of a series of rotating screens, belts, paddles, or rollers that separate stones and debris from the soil, depositing them into a collection hopper or container for removal. Stone picking machines vary in size, capacity, and design, catering to different farm sizes and requirements.
Product Parameters

Model	12JS- 160	Dimensions(mm)	7000*2400*2550
Operation width(mm)	1600	Operating depth(mm)	0-300
Pick Up The Smallest Size	28.8mm/41mm	Supporting power	150HP
Weight(kg)	4800	Conveyer Type	Grid Chain
Conveyor Chain Gap	50.8mm/63.5mm	Volume Of Collection Box	4.2m³
Heating Method	Hydraulic Cylinder	Unloading Height	2000mm

Certifications

Packaging & Shipping
To ensure the safe delivery of your products, we offer a range of packaging options including direct loading container, Wooden case packing, iron frame wrapping and direct wrapping. You can select the most suitable option based on your specific requirements.
Company Profile
Dezhou Hongyou Agricultural Machinery Co., Ltd.
Dezhou Hongyou Agricultural Machinery Co., Ltd. is located in Ningjin County, Shandong Province, which is known as the "Agricultural Machinery City". Established in 2002, the company has 22 years of processing history and experience, and is a high-tech manufacturer focusing on agricultural machinery products for underground root crops.

Our main products include five series of more than 55 varieties, such as potato harvester machines, mulch film recovery machines, field stone picking machines, ridging and mulching machines, and seeding killer machines.

The company has passed the ISO9001-2008 quality system certification. We will always adhere to the business philosophy of "quality first, customer first", use advanced technology and professional products to make modest contributions to the modernization of agriculture. We sincerely invite partners from all over the country to join us in cooperation and jointly promote the modernization of agriculture, create a brilliant future for agricultural machinery. We warmly welcome both new and old.

We have an old factory area and a new factory area under construction for producing and processing machines. There are finished product stacking area, machine processing area and production workshop.
Customer visit factory
