Product Description

Product Overview

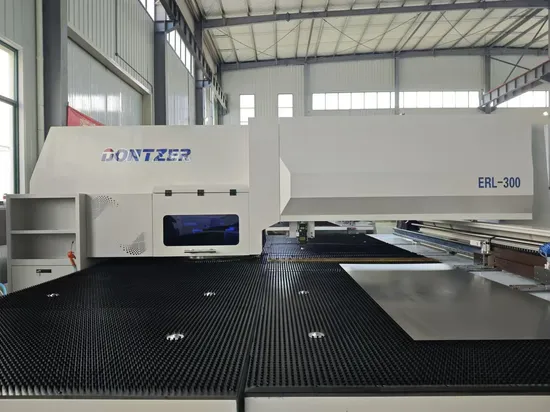

The CNC punching and cutting composite machine has both servo punch forming processing technology and the characteristics of high laser cutting efficiency and good cross-sectional quality.
The optional automatic tapping function can achieve punching, forming, scribing, lettering, rib rolling, laser cutting, and tapping.
It can provide a new intelligent manufacturing solution for your production. This composite machine includes a punch press mainframe, laser cutting system, and electrical components. The composite machine adopts a full German Rexroth CNC system, motor, and drive.
Detailed Photos
* Steel plate frame
* Tempering fireplace
* One-step clamping
* Thick rotating tower
* Extending mold life
* High accuracy
* International standard 85 series mould
* High surface hardness
* Strong anti-abrasion
* Tempering clamp slide
* Blackening of clamp surface
* Installing scales
* The special fibre laser cutting head, with stable and reliable performance, ensures the best cutting quality and achieves high cutting speed.
* Non-contact capacitive sensor to ensure stable cutting follower gap, ensuring a very good cutting effect.


Product Parameters

NO.		Specification/Model	quantity	Remarks
CNC punching and cutting compound machine		ERL300	1	¨28¨ 32 workstations
Laser cutting systems	systems	Rexroth Indraworks	1
	lasers	Chuangxin Maxphotonics-1500W/3000W	1
	cutting head	Ka Keung Empower BM110	211
	chiller	Hanli HL-3000	1
	air compressor	11kw	1	optional
Unloading device		Custom sizes	1	optional

CNC Punch Press Parameters:

NO.	Name		parameter	unit	Remarks
1	punch force		300 (30)	KN (T)	Optional 400 (40)
2	machine structure		"O" closed type		Fireplace Tempering
3	Maximum sheet size		X-axis 2500	mm	X-axis secondary positioning 5000mm
			Y-axis¨ 1250¨ 1500	mm
4	Maximum plate thickness		6.35	mm
5	Maximum diameter of one punch		Φ88.9	mm	Non-standard customisation
6	Punching frequency		2300	hpm
7	Maximum punching frequency (6mm stroke in 1mm steps)		900	hpm
8	Maximum punching frequency (6mm stroke in 25mm steps)		400	hpm
10	Mould form		Long guide 85 series international standard mould
11	Turret station distribution ¨28¨ 32 workstations		¨12A, 10B, 4C, 2D (2B, 2C Auto-index) ¨16A, 11B, 3C, 2D (1B, 1C Auto-index)	standard equipment	Non-standard customisation
12	Number of clamps		3	PCS
13	Repositioning cylinders		2	SET
14	Number of control axes		6/7	PCS	Non-standard customised Y-axis cutting head movement
15	Maximum speed of plate movement		106	m/min
16	Table structure		Brush/Universal Steel Ball Composite Countertop
17	Maximum feed speed	X-axis	90	m/min
		Y-axis	80	m/min
		X, Y linkage	110	m/min
18	Turret speed		30	rpm
19	Machining precision		±0.10	mm
20	Maximum load capacity		156	Kg
21	Clamp Blind Zone Detection		√
22	Alarm device for loose clamp plates				optional
23	Anti-Warping Test for Panels		√
24	air pressure		0.6	MPa
25	power supply		380±5%	V
26	Weight		¨15¨ 17	T
27	Overall dimensions (L x W x H)		¨5200¨ 5500x5200x2280	mm	Bed colours available in red and white or custom colours

Product category


Company Photos
Certifications

FAQ
1. How about the delivery time?
Generally, it's 15-30 days based on the model.
2. How is the warranty time?
1 year after installation.
Lifetime free technical support.
3. How to choose a suitable machine?
Please advise us on the material/ thickness/ dimension of the metal sheet, and the punched drawing.
