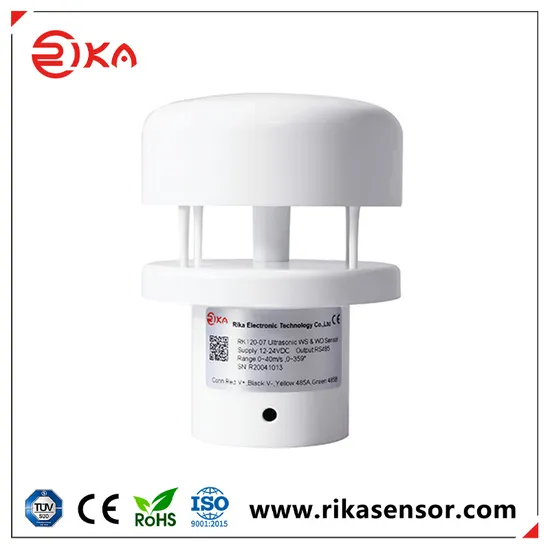

Rk120-07 Low Cost Wireless 4G WiFi Digital Ultrasonic Anemomet Wind Speed Direction Sensor

Product Description

RK120-07 Low Cost Wireless 4G Wifi Digital Ultrasonic Anemomet Wind Speed Direction Sensor Product Description RK120-07 The wind speed and direction meter is a kind of measuring instrument which uses the time difference of ultrasonic wave in the air to measure the wind speed and direction. RK120-07 uses low-power chip with power consumption of only 0.2W, which is especially suitable for solar or battery powered environment with high power consumption requirements. Due to the adoption of new technology and new process, the structure is more compact and compact. Optional temperature and air pressure module.
FEATURES
Adapt to complex weather conditions
No moving parts, long service life
The surface preservative treatment
Strong anti-interference
High accuracy
APPLICATIONS
Environmental monitoring
Sea-going vessel
Bridge & Tunnel
Solar and wind power generation
Wind resource assessment
Drilling platform
Automatic weather station
Agriculture

SYSTEM TECHNICAL SPECIFICATION

Item	Technical Specification
Power Supply	12-24VDC
Power consumption	1.7W
Output Signal	4-20mA ,RS232/RS485(Modbus or NMEA-183), SDI-12
Operating Temperature	-30ºC-+60ºC
Ingress Protection	IP65
Dimension	Ф82*108mm
Weight(unpacked)	0.8kg
Main material	ABS
Item	Technical Specification
	Range	Resolution	Accuracy
Wind speed	0-40m/s	0.1m/s	±3%
Wind direction	0-360°	1°	±3°
Starting Threshold	0.1m/s	0.1m/s
Extreme Wind Speed	60m/s

Detailed Photos
FAQ Q: Are you the final manufacturer?
A: Yes, We are SENSOR manufacturer and exporter in china with 10+ years experience and with the factory authorized by SGS.
Q: Do you offer the OEM service?
A: Yes, we can offer OEM service and design the logo marking for you. But the minimum quantity is 10pcs for the first order .

Q: Do you offer free samples?
A: Sorry , we do not offer free samples . You should pay for the samples and freight cost.

Q: What payment ways do you accept?
A: You can pay us by T/T , PayPal , and West Union .

Q: What is your delivery time?
A: It is in 6-8 working days since the payment confirmed . If quantity is more than 100pcs /order, it will need extra 3-5 working days .
Q: What is your normal delivery way?
A: Goods will be sent by DHL / FEDEX / UPS / EMS / TNT / or other proposed forwarders.
Q: How is your quality assurance service?
A: Our service is free exchange within one month and 12 months quality guarantee if non-manmade damage.
Q: Could we make a visit to your factory?
A: Yes, you are welcomed . But before that, we will do the visiting investigation.
