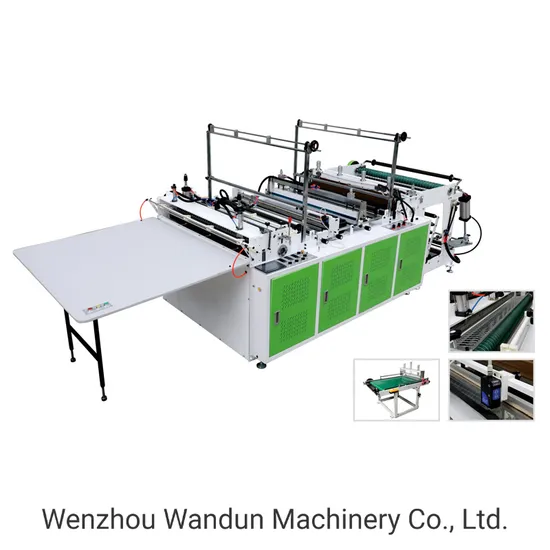

Cold Cutting Bag Making Machine with Four Servo Motors

Product Description

WT-W Series Fly Cutting Type Non-stretch Cold Cutting Bag Making Machine(Four Servo Motors)
Introduction:
1.This type of machine is suitable for processing flat-end and waistcoat bags with tub-size films of HDPE/LDPE/PP in primal color or colors.
2.The character of this type is that reduce the phenomena of pulling to much for the healing of film bags while the machine is working.
3.It is controlled by computer and driven by servo motor.
4.Electronic eyes follow the sign of colorful film,which keep the location of words and picture more exactly.
5.The setup of length and speed are controlled by the computer which keeps the waste much less and operate much more easier.
6.It is accompanying with the automatic functions about carrying material,sealing and cut,counting,sending out and alarm,etc.
7.The fly cutter adopts fly cutting type,and the cutting knife and hot knife are driven by servo motor.
Main Technical Parameters:

Model	WT-W1000	WT-W1200	WT-W1400
Max bag making width	<=900	<=1100	<=1300
Max cutting length	<=1500	<=1500	<=1500
Thickness of single layer	0.01-0.15	0.01-0.15	0.01-0.15
Production capacity	30-100pcs/min	30-100pcs/min	30-100pcs/min
Total power	4kw	5kw	5kw
Power supply	50HZ,220V	50HZ,220V	50HZ,220V
Weight of Machine	1100kg	1200kg	1200kg
Overall Dimensions	3500*1600*1300mm	3500*1800*1600mm	3500*2000*1600mm
The data is subject to change without prior notice.

WENZHOU WANDUN MACHINERY CO.,LTD. is located in the south of Zhejiang. We are a professional producer of PE air bubble film making machines, film blowing machines, bag making machines, stretch film machines, plastic laminating machines, printing machines, plastic recycling machines, and so on. We have a good team for the R&D, design and sale. Our engineers have more than ten years of experience in plastic industry. We can design the machines according to our clients' requirements. Our main markets are South America, Africa, the Middle East, the EU and Southeast Asia. More than 98% of our products are exported to overseas markets, such as Greece, Croatia, America, Columbia, Dominican Republic, Nigeria, Ethiopia, South Africa, Saudi Arab, Israel, etc. We also provide good after-sales services immediately. The quality and good service are our business principle. You are welcome to visit our factory to have business discussion. We wish we can have great business cooperation together.Q1. What is your terms of packing?
A: The normal package is making a pallet to protect the machine at the bottom and wrap the whole machine with plastic film packing.
If export to EUROPEAN countries,the wooden box will be fumigated. we use PE film for packing or pack it according to customers
special request.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the
quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
