China Precision Cylindrical Grinding Grinder Machine M1022 Hydraulic Surface Grinding

Product Description

China Precision Cylindrical Grinding Grinder Machine M1022 Hydraulic Surface Grinding
Product Description
The main performance characteristics:
1. The machine has reasonable structure, good rigidity, beautiful appearance, convenient operation.
2. Worktable ball track using steel materials for high precision steel balls, abrasion resistance, easily moved and labor saving, and can be greatly improve work efficiency.
3. Former after skidway through careful scraping flower, not only slide smoothly, and wear-resisting, maintain good accuracy, flexible and convenient operation. manual worktable driven by synchronous belt transmission, wear well.
4. The spindle adopts super precision ball bearing P4, after strict selection after the pre pressure measurement, assembled in the greenhouse, and with the labyrinth design completely waterproof, In order to ensure the service life of the bearing and the grinding surface roughness.
5. No vibration, low noise motor spindle.
6. According to the needs of users with a permanent magnet sucker or electromagnetic sucker.
Application:
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
Product main technical parameters:

Specifications					Units	M1022
workbench	Worktable size (L * W)				mm	540×250
	Max. travel of table(L * W)				mm	560×260
	Table T slot (slot number x slot width)				mm	1×14
Grinding head	The grinding wheel size (o. d * w * i. d.)				mm	φ200×20×Φ31.75
	Distance spindle center line to working table				mm	420
	Grinding wheel speed		50HZ		r/min	2850
			60HZ		r/min	3360
The amount of feed	The vertical (up and down) feed handwheel feed		Handwheel per turn		mm	1.25
			Handwheel per lattice		mm	0.01
	Transverse (front and rear) feed handwheel feed		Handwheel per turn		mm	4.0
			Handwheel per lattice		mm	0.02
Motor power	Spindle motor				kw	1.5
	Cooling motor				W	40
working accuracy	the process surface of the base level of the parallel degree				mm	300:0.005
	Surface roughness				μm	Ra0.32
Machine weight				kg	kg	850
				kg	kg	950
External size (L * w * h)					mm	1680x1140x1760
Packing size (L * w * h)					mm	1200x1400x1940

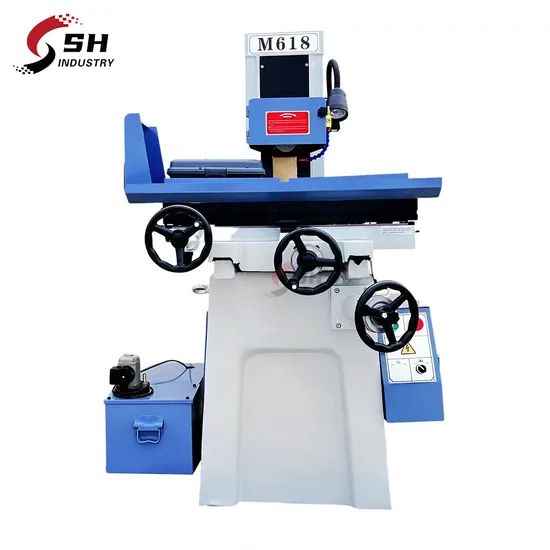

Detailed Photos

Company Profile
Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
