Heavy Duty Large CNC Controlled High Speed Gntry Drilling Machine

Product Description

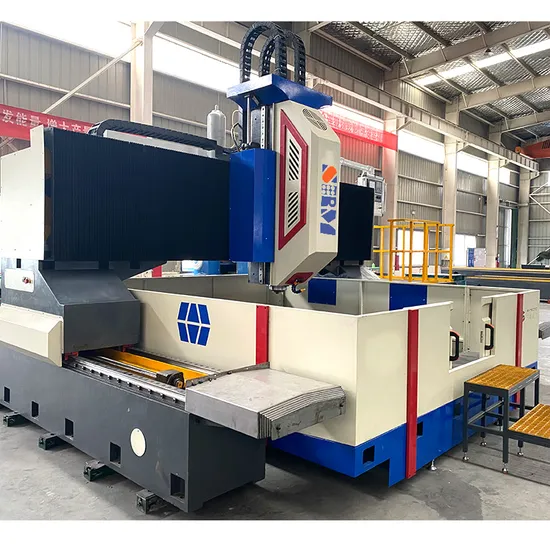

Heavy Duty CNC Gantry Moving Machine/High Speed Drilling Machine/Steel Plate Drilling Machine

Product Description
The PMD-series is a gantry moving CNC high-speed drilling and milling machine, mainly used for drilling, shaving, chamfering, grooves inside holes and milling of flanges, heat exchangers, tubeplates, rotary supports and other workpieces. It can be used for internal cold high-speed drilling with hard alloy drill bit or external cold drilling with high speed steel twist drill bit. Drilling depth of 10D (10x diameter) can be achieved with special crown drill bit. The machining process is NC and easy to operate. Adopting iron casting bed, it It can realize automatic, high precision and many kinds of mass production
CONSISTS OF THE BELOW ITEMS
Machine Body
Working table
Moving Gantry
Vertical sliding pillow type power head
Hydraulic system
Pneumatic system
Cooling system
Centralized lubrication system
Electrical control system
Automatic chip removal system
Tooling Changing System
THE PRODUCT STRUCTURE FEATURES
1.The machine mainly consists of the bed and the longitudinal slide table,gantry and the horizontal slide table,the vertical sliding pillow drilling power box,the work table,the electric control system,the hydraulic system,the cooling system,the chip system,the centralized lubrication system and so on.
2. The machine adopts movable gantry and fixed worktable,save the floor area.
3.The machine bed and worktable are independent,which improves the stability of the equipment and effectively reduces the vibration generated during high-speed drilling.
4.The longitudinal and lateral movements of machine tools are guided by precision roller linear guide,which greatly increases the rigidity of the equipment.
5.The spindle motor uses a special servo motor to drive the spindle through the synchronous belt, stepless speed regulation, low speed torque,can withstand heavy cutting load,and can be suitable for high-speed machining of hard alloy tools.
6.The main axis of drilling is Taiwan precision spindle (internal cooling),the main axis cone hole BT50,with a
butterfly springautomatic broaching mechanism,through the rod to install the drill or milling cutter,the hydraulic cylinder loose knife,the replacement tool is very convenient. Product Parameters

Model	PMD-3030
Processing(mm)	3000×3000
Maximum thickness(mm)	300
Number of spindle	1
Spindle model	BT50
Spindle speed(r/min)	10-3000
Feed stroke(mm)	500
Dia.of drilling hole(mm)	φ60
Maximum tapping diameter(mm)	Optional M32
Motor power(KW)	22KW Inverter motor (18.5KW servo motor)

Main difference between PHD&PMD

Items	PHD-eries	PMD-Series
Bed Material	steel plate welding	Gray Iron Casting
Gantry Moveable	Double servo motor double screw synchronous double drive	A dedicated servo motor drives the spindle through a timing belt
Power Head	Servo Slide Drilling Power Head	(Semi-enclosed) Ram type power head
Max.Tapping Diameter	M20	M32
Milling	yes	yes
Max.Drilling Diameter(mm)	Ø50	ø100
Secondary reamer machining for your tube sheet	Yes	No

Detailed Photos
WORKSHOP
IRON CASTING BED
HOT SELLING DRILLING MACHINE
