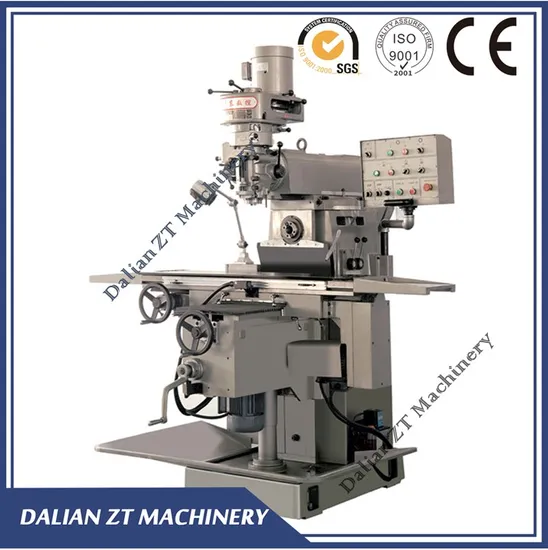

6# Conventional Universal RAM Vertical Bridgeport Type Turret Milling Machine

Product Description

Main Feature
* Meehanite casting with aged stress-relieving for high accuracy and long life.
* Hardened & ground guideways with Turcite-B coated for wear profftness and long lasting accuracy.
* High precision CP4 spindle bearings for low noise and smooth movement.
* Square way, offers wide cutting range.

Table size	mm	330x1370
Machine load	kg	380
X/Y/Z-travel (without feeder)	mm	835/385/460
X/Y/Z-travel (with feeder)	mm	835/385/460
Milling head tilt		45° (F/B; L/R)
Ram travel	mm	620
Spindle feed ratio	mm	0.04/0.08/0.15
Taper of spindle bore		NT40
Spindle motor	HP	5
Spindle speed (@50Hz)	rpm	70-3600, 10 steps
Net weight of machine	kg	1680

Standard accessories:
Draw bar;
Toolbox and tools;
R8 collet set;
Way cover;
Work lamp;
Levelling pad;

WORKSHOP
FAQ
1. How can I choose the most suitable machines ?
A: You can choose the exact model by yourself. Or you can tell us your specifications, to let us choose the best model for you, too.
You can also send us the product drawing, and we will choose the most suitable machines for you.
.
2. When do you deliver?
A: It depends on the machine and model you choose. Mostly 1.5 months - 3 months. All machines are brand new, made according to your order. Occasionally there will be a few machines available from stock. You can send us a message or mail to check exact delivery time.

3. Is machine tested ?
A: The accuracy, noisy will be tested according to China GB standard.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5. What's the Payment Terms ?
A : T/T 30% down payment when order ,70% balance payment before shipment ;
Irrevocable L/C at sight also acceptable but it will subject additional bank fee.

6. Do you accept cash or L/C?
A: We accept T/T or L/C, all through banking system. We do not accept cash, 'cause we are an official registered company that all payment must go through official bank account.
7. What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set)
8. How is the warranty?
A: 12 months after shipment date
9. If I have a problem setting up/ getting it running problem, will you be available by email to assist in solving the problem.
A: Video technical support, online service, we can answer you in 24 hours.
