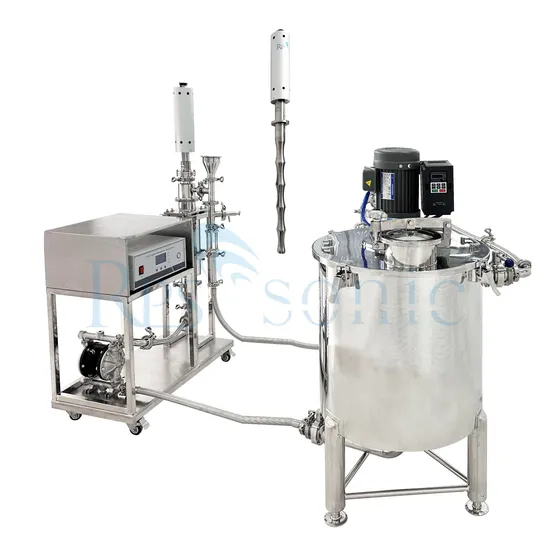

Continuously Ultrasonic Cosmetic Processor Homogenizer Disrupter

Product Description

Continously ultrasonic cosmetic processor homogenizer disrupter Product Description An ultrasonic cosmetic processor is a device that utilizes ultrasonic vibrate for various cosmetic - related applications. Here is a detailed introduction:
Working Principle: When these ultrasonic waves act on substances, they produce three main effects: thermal effect, mechanical effect, and cavitation effect. The thermal effect can increase the temperature of the local area, promoting skin metabolism. The mechanical effect can cause micro - vibration and friction, which helps to clean the skin and promote the absorption of nutrients. The cavitation effect generates numerous tiny bubbles in the liquid, and the violent expansion and contraction of these bubbles produce strong shock waves and shearing forces, which can be used for cell fragmentation, emulsification, and homogenization. Product Parameters

Model	SONO20-1000	SONO20-2000	SONO15-3000	SONO20-3000
Frequency	20±0.5 KHz	20±0.5 KHz	15±0.5 KHz	20±0.5 KHz
Power	1000 W	2000 W	3000 W	3000 W
Voltage	220/110V	220/110V	220/110V	220/110V
Temperature	300 ºC	300 ºC	300 ºC	300 ºC
Pressure	35 MPa	35 MPa	35 MPa	35 MPa
Intensity of sound	20 W/cm²	40 W/cm²	60 W/cm²	60 W/cm²
Max Capacity	10 L/Min	15 L/Min	20 L/Min	20 L/Min
Tip Head Material	Titanium Alloy	Titanium Alloy	Titanium Alloy	Titanium Alloy

Installation Instructions
The cavitation effect of ultrasonic energy Irradiate the solution with a certain sound intensity. When the sound intensity increases to 0.5 ~ 0.7 W / cm if you put a hydrophone in the solution, you can hear the strong noise in the solution. . This noise occurs with the phase of the sound field and occurs once in one or more cycles. It has been found that this noise essentially bends when the sound field is in the expanding phase, and the trace gas dissolved in the solution accumulates into small bubbles (also known as cavitation nuclei). After the sound field becomes a compression phase, the radius meets- Conditioned gas pools are rapidly compressed and inward condensation occurs. In this way, the liquid wall around the bubble produces a strong paddle sound when it shrinks rapidly. This process is usually extremely momentary and only occurs between a few nanoseconds and a few microseconds. For the gas in the bubble, the temperature rises sharply after being compressed. This temperature is usually astonishingly high, reaching a maximum of more than 10,000 degrees Celsius, and at a few thousand degrees when it is low. This physical process is called cavitation effect, and the accompanying noise is called cavitation noise. This temperature is related to the green strength, the initial radius of the bubble, the radius at which the compression ends, and the specific heat capacity of the gas. Therefore, as the dissolved gas in the solution is different, the temperature at which the cavitation region terminates after cavitation occurs is not the same, and the volume of the solution in which the rare gas is dissolved often has a higher cavitation termination temperature. The local high temperature in the solution caused by the cavitation effect is the determinant of the chemical reaction.
Cavitation effect and sonochemical reaction Because the temperature of the cavitation region is extremely quotient, this region is generally called a hot spot ", which is the local quotient temperature point in the solution. The high temperature of the hot spot causes the interface between bubbles and liquid to be several hundred nanometers thick In the city being poured, the liquid molecules are cracked into free radicals. Due to the rapid contraction of the liquid wall when cavitation occurs, these: free radicals are projected into the solution at high speed at the same time as these are generated, and these highly talkative free radicals will be mixed with ficus Free radical reactions of molecules in the liquid, which trigger a series of chemical reactions
• Cell disrupter (extraction of plant substances, disinfecting, enzyme deactivation)
• Therapeutic ultrasound, i.e. induction of thermolysis in tissues (cancer treatment)
• Decrease of reaction time and/or increase of yield
• Use of less forcing conditions e.g. lower reaction temperature
• Possible switching of reaction pathway
• Use of less or avoidance of phase transfer catalysts
• Degassing forces reactions with gaseous products
• Use of crude or technical reagents
• Activation of metals and solids
• Reduction of any induction period
• Enhancement of the reactivity of reagents or catalysts
• Generation of useful reactive species
