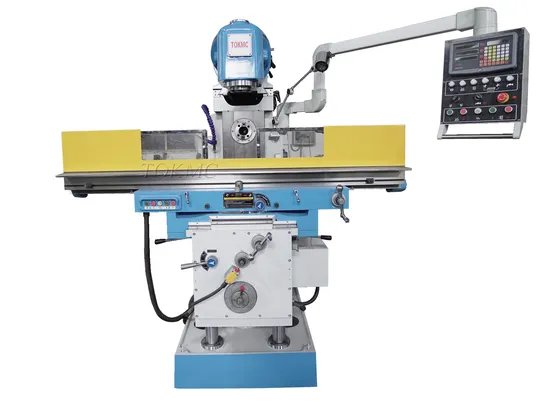

Swivel Head Universal Milling Machine (TUM1680BVH Knee type Vertical Milling Machine)
| US$10,000.00-50,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
TUM1680BVH
Structure
Bed type
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE
Condition
New
Table Size
2000X400mm
Leadscrew
Ballscrew on X, Y Axes
Worktable Swivel Angle
±45°
Table Travel
1620X400X500mm
X,Y Axis Feeding
22.4-560mm/Min 8steps
Transport Package
2400X2200X2470 mm
Specification
3800kgs
Trademark
TOKMC
Origin
Tengzhou
HS Code
84595900
Production Capacity
100 Sets/ Year
Product Description
Product DescriptionSwivel Head Universal Milling MachineTUM1680BVH
Heavy Construction And High Rigidity.
Wide Slide ways For Stability.
ISO50 Spindle.
Universal Head. Pendant Control.
Hardened And Ground Slide ways and Table.
| Model | TUM1680BVH |
| Spindle Taper | 7:24 ISO 50 V /H |
| Distance from Spindle to Column surface | 200-1000mm vertical milling head |
| Distance from Spindle Nose to Table Surface | 210-700mm vertical milling head |
| Max.Distance from Spindle Center to Table Surface(H) | 0~500 mm horizontal |
| Distance from Spindle Center to Table Surface | 280-1160mm vertical head |
| Spindle Speed Range | 50-1520 rpm V 60-1850 r.p.m H |
| Table Size | 2000×400mm |
| Worktable Swivel Angle | ±45° |
| Table Travel | 1620mm |
| Cross | 400mms |
| Vertical | 500mm |
| X,Y axis Feeding | 22.4-560mm/min 8steps |
| Z axis Feeding | 11.2-280mm/min 8steps |
| T-slots of Table | 3 |
| Width | 18mm |
| Distance | 80mm |
| Main Motor | 5.5kw/7.5 kw |
| Feeding Motor | 1.1kw |
| Coolant Pump Motor | 40w |
| Overall Dimensions | 2400x2200x2470 mm |
| Net Weight | 4100kg |
Optional accessory
| three axes DRO |
| universal dividing head 200mm with tailstock |
| slotting head |
| working area guard |
| machine vise 8" |
| Clamping Kit 58pcs |
| rotary table 250mm |
| spindle guard |
| X,Y axes ballscrew |
