CE Tz-8 Series 4 Wheel Tractor Mini 4 in 1 Front End Loader Can with Dozer Blade Forklift Snowblower Backhoe Excavator

Product Description

TZ series front loader

This front end loader is powered by tractor . And it need the tractor be present when we producing . So We usually recommend the customer buy a tractor and this loader together . The price on the page is only for the loader . Please notice it .

Model	TZ-3	TZ-4	TZ-6	TZ-8
Power (HP)	20-35	40-55	60-75	80-1004
Max. dump height (mm)	2000	2100	2350	2350
Max. dump distance (mm)	900	900	960	1000
Bucket rollback angle (degree)	42	42	42	42
Max. Unloading angle (degree)	47	47	160	160
Max. scraping depth (mm)	100	140	46	46
Lifting time to pivot pin(S)	7	7	8	8
Descending time (S)	3.5	3.5	4	4
Bucket capacity (m3)	0.3	0.35	0.48	0.6

Detailed Images :

TZ series tractor front end loader main performance and features:

1.Used in shoveling, stacking or short-distance transportation of loose material ,such as mud, sand, stone, garbage

2.Featured with compact structure, flexisbility, conveinent opration, and quick mounting / dismounting

3.Hydraulic transmission is used. It uses the hydraulic oil commonly with tractor. The hydraulic elements are standard , convenient for repair and service.

4.Different work devices are optional, such as combined buckets (4 in 1 bucket), grating cover bucket, pallet handler, timber grab and bale fork etc

5. Quick release design ensures the bucket can be easily removed and various other attachments fitted.

6.OEM service is acceptable, products can be customized.

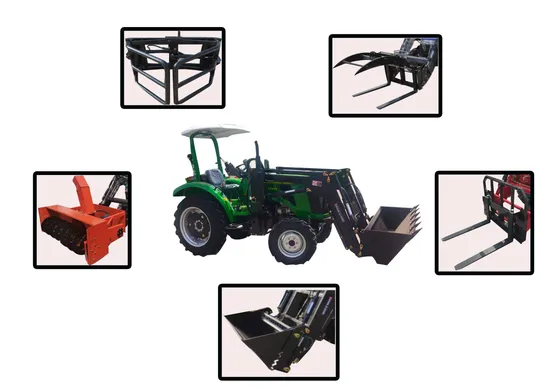

It can be matched with others tools
