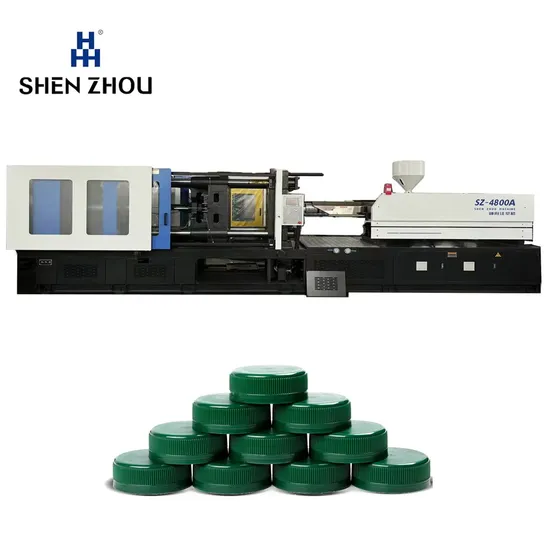

Preform Price Bottle Cap Making Plastic Wine Caps Injection Molding Machine with CE
| US$25,000.00-35,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
SZ-2000A
Type
Preform Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Competitive
High Qulaity
Stable
High Efficiency
Durable
Long Life
Marketing Type
New Product
Color
Customers′ Request
Model No.
Sz-2400A
Distance Between Tie Bars(mm)
555mm
Ejector Stroke(mm)
135mm
Ejector Force(Kn)
61.5 Kn
Theoretical Shot Volume(Cm³)
791 Cm³
Injection Rate (G/S)
210 G/S
Injection Weight (G)
720 G
Screw Diameter (mm)
60 mm
Power (Kw)
22 Kw
Weight (Kg)
8000
Transport Package
Wooden Box
Specification
2400KN
Trademark
SHENZHOU
Origin
Jiang Su, China
HS Code
8477101090
Production Capacity
600sets/Year
Product Description
| ITEM | UNIT | SZ-2000A | ||
| INJECTION UNIT | ||||
| SCREW DIAMETER | mm | 50 | 55 | 60 |
| SCREW LID RATIO | L/D | 23.1 | 21 | 19.3 |
| THEORETICAL SHOT VOLUME | CM3 | 491 | 594 | 707 |
| SHOT WEIGHT(PS) | g | 447 | 540 | 643 |
| INJECTION PRESSURE | Mpa | 215 | 178 | 149 |
| THEORETICAL INJECTION RATE(PS) | g/s | 145 | 175 | 208 |
| PLASTICISING CAPACITY | g/s | 22.5 | 28.7 | 35.4 |
| SCREW TORQUE | N.m | 1510 | ||
| MAX.SCREW ROTATE SPEED | r/min | 170 | ||
| INJECTION STROKE | mm | 250 | ||
| CLAMPING UNIT | ||||
| MAX.CLAMPING FORCE K | KN | 2000 | ||
| MAX.OPENING STROKE | mm | 500 | ||
| SPACE BETWEEN TIE BARS | mm | 505×505 | ||
| MOULD HEIGHT | mm | 190-530 | ||
| MAX.DAYLIGHT | mm | 1030 | ||
| EJECTOR FORCE | KN | 53.1 | ||
| EJECTOR STROKE | mm | 125 | ||
| EJECTOR QUANTITY | 5 | |||
| OTHER | ||||
| PUMP MOTOR POWER | KW | 18.5 | ||
| PUMP PRESSURE | Mpa | 16 | ||
| HEATING POWER | KW | 16.6 | ||
| HEATING ZONE | 4 | |||
| SIZE | m | 5.9×1.5×2 | ||
| NET WEIGHT | t | 6.8 | ||
| OIL TANK CAPACITY | L | 420 | ||
| INTERNATIONAL DESIGNATION | 2000-1060 | |||
Q1: All of your products are made by yourself or purchasing the others?
We have independent technical team who focus on making machines, all the products
are made by our technical team.
Q2: What is the ability of your factory?
About injection molding machine, we could produce 50 sets machines per month.
about blow molding machine, we could produce 30sets machine per month
Q3: Do you have any technical supports about your products?
We have had long term collaboration with our partners worldwide, and we have a lot
of cooperation with a lot hef advanced manufacture company on the world.
Q4: Does the machine have an English manual and warranty card?
Each machine has a professional English operation manual and warranty card.
In addition, we can provide electronic version of the English manual.
Q5: Do you have an aftermarket warranty for your products?
Warranty: General one year for whole injection molding machines.
General one year for other types of whole machines.
All customers that have bought SHENZHOU injection molding machines would be provided with a lifetime repair service of the machines.
Q6: Who is responsible for the installation and debugging of the machine I purchased?
We the seller are fully responsible to send our engineers within two weeks from the date of the containers arrival to the buyers factory to commissioning the machine and training the staff of the buyer, the buyer should be responsible for a round trip economy ticket, a hotel and any other necessary accommodations for the seller's engineers, and engineer cost USD 80.00 per day.
