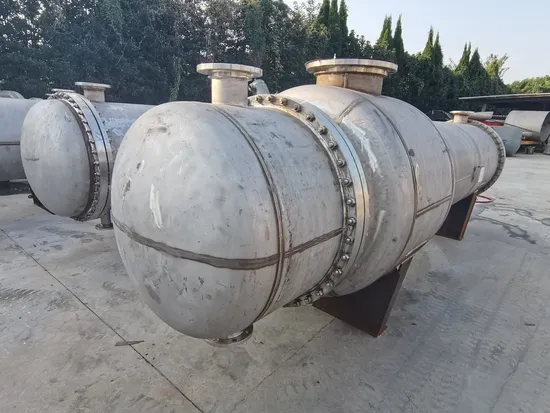

Chemical Cooling Condenser EMC Stainless Steel Separation Condenser U Stamp

Product Description

Product Description
The light tower condenser is a commonly used chemical equipment used to condense light components from steam or gas into liquid. It usually consists of a condenser body, a cooling medium supply system, and a condensate collection system.
The classification of light tower condensers mainly includes the following:
1. Shell and tube condenser: Shell and tube condenser is one of the most common types of condenser. It consists of a shell and multiple internal pipes, through which steam or gas flows, while the cooling medium flows through the shell, achieving condensation through heat transfer between the shells.
2. Tube bundle condenser: A tube bundle condenser is a type of condenser that combines multiple tubes together to form a tube bundle. Steam or gas flows through the tubes in the tube bundle, while the cooling medium flows outside the tube bundle, achieving condensation through heat transfer on the tube wall.
3. Tube plate condenser: A tube plate condenser combines multiple tubes and plates to form a unit. Steam or gas flows through the tubes, while the cooling medium flows between the plates, achieving condensation through heat transfer between the plates.
SCOPE OF WORK
Mechanical and Fabrication guarantee
Design including strength calculation (including erection condition) stress analysis and detail design based on applicable Codes, Local Regulation, Project Specifications and Standards
Thermal Design (Thermal Rating)
All technical certifications required for design work as per local regulations
Stability check (during transport, lifting and hydrostatic test) and loading data for base design
Structural analysis for main body and its support for operation load
Material procurement
Material Test and Certificates as per applicable Code and Specifications
Manufacturing
Post weld heat treatment as per code and specification
PMI (Positive Material Identification)
All NDEs as per Project Specification
Welding procedure qualification test
WPS & PQR
Welder performance test
Hydrostatic test at BlDDER shop as per Code & Local Regulations, Specifications.
Installation work for vessel internals supplied by Bidder
External surface preparation and painting as per Specification
Packing and marking as per project specificationsPreservation during transportation and storage (Including Seaworthy packing for oversea manufacturer)
Internal protection from moisture: N2 Charge
All activities to meet requirements of Data Sheets, Specifications, Codes and Standards, Local Regulations

1. Q:Are you a manufacturer or trading company?
A:We are a manufacturer with over thirty years of experience in China.
2.Q:Can we visit your factory before placing orders?
A: Sure, warmly welcome to our factory!
3.Q:What's the information needed if I send one inquiry ?
A : Please tell us the working conditions, mediums,temperature ,pressure, equipment ' s material,size,quantity, and other special requests.
4.Q:How does your factory do quality control?
A: Quality is priority ,we make relevant strict testing before delivery.
Our factory has already obtained ASME, GOST, ISO9001 quality and ISO 14001 Environmental management system certificate.
