Basic Info.
Species
Die Cutting and Creasing Machine
Placing Form of Template
Horizontal
Die Cutting Tool
Metal Mold
Computerized
Computerized
Automatic Grade
Automatic
Application
Paper Packaging Materials
Min. Paper Size
400*350mm
Maximum Production Speed
500 Sheet/Hour
Max. Working Pressure
250t
Max. Die-Cutting Siz
1070*770mm
Scope of Application
White Board≧250g, Corrugated Board≦7mm
Transport Package
Hard Export Packaging
Production Capacity
100000-1000000
Product Description

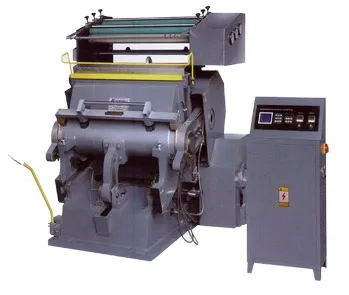

MJTJ-1 Hot Stamping and Cutting Machine (CE)
The series of model MJTJ-1 gilding, cutting & mark pressurized machine is product of new generation with clockwork precision and marked effect. It is used for gilding-printing all kinds of colored electro-chemical aluminum, marking a concave-convex die-cutting pictures, trade mark, advertisement of sample, boxes, cover of books and new year card, highly decorations and printing materials. It is the optimum equipment for printing, packing, decoration and plastic industries with materials including paper, cardboard, plastic, leather matters.
It adopts high quality material and high tension of casting
It adopts four-shaft bevel wheel structure with steady operation, great cutting, low noise.
Sound and layout of its height, great angle of frame.
Electrical system is designed according to IEC standard.
It has three functions for single slitting, successive slitting, time delay. Its can be adjusted.
Safety protection system is reliable.
Concentrated lubricating system.
Main Specification
| Model | Max. Platen Working Area | Max. Gilding Printing Area | Skip Order Range | Working Pressure | Foil-delivered Length | Foil-delivered Group | Working Speed | Main Motor | Overall Power | Overall Dimensions | Total Weight |
| MJTJ-1-750 | 750*520mm | 740*510mm | Built-in Processing With Computer | 100T | 500mm | 2 groups | 1380Time/h | 2.2kw | 10kw | 2150*1400*1900mm | 2500kg |
| MJTJ-1-930 | 930*670mm | 920*660mm | Built-in Processing With Computer | 170T | 640mm | 3groups | 1320Time/h | 4kw | 13kw | 2200*2000*1950mm | 3500kg |
| MJTJ-1-1040 | 1020*700mm | 1020*700mm | Built-in Processing With Computer | 170T | 700mm | 3groups | 1320Time/h | 4kw | 13kw | 2230*2100*2000mm | 4500kg |
| MJTJ-1-1100 | 1080*780mm | 1080*780mm | Built-in Processing With Computer | 220T | 800mm | 3groups | 1200Time/h | 5.5kw | 19kw | 2250*2200*2000mm | 5000kg |
| MJTJ-1-1200 | 1180*800mm | 1180*800mm | Built-in Processing With Computer | 220T | 800mm | 3groups | 1200Time/h | 5.5kw | 19kw | 2250*2200*2050mm | 5500kg |
| MJTJ-2-1300 | 1300*920mm | 1250*870mm | Built-in Processing With Computer | 380T | 870mm | 3groups | 900Time/h | 7.5kw | 25kw | 2500*2200*2450mm | 6500kg |
| MJTJ-2-1400 | 1400*1000mm | 1350*950mm | Built-in Processing With Computer | 380T | 950mm | 3groups | 900Time/h | 7.5kw | 25kw | 2600*2200*2500mm | 7200kg |
| MJTJ-2-1500 | 1500*1050mm | 1450*1000mm | Built-in Processing With Computer | 380T | 1000mm | 3groups | 900Time/h | 7.5kw | 25kw | 2700*2200*2600mm | 8000kg |
| MJTJ-2-1600 | 1600*1250mm | 1550*1200mm | Built-in Processing With Computer | 380T | 1200mm | 3groups | 900Time/h | 7.5kw | 35.5kw | 2800*2200*2600mm | 12500kg |
