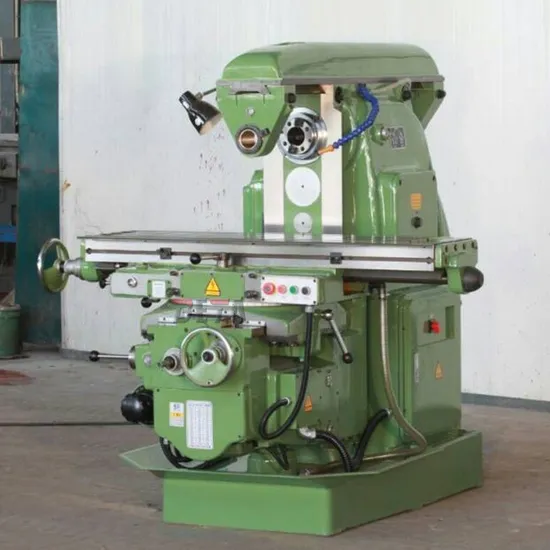

Horizontal Universal Knee Type Milling Machine X6140 for Metal Processing
Basic Info.
Model NO.
X6140
Type
Tool Milling Machine
Object
Hardware
Structure
Ram
Milling Cutter Type
Customized
Milling Cutter Structure
Customized
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Horizontal Universal Knee Type Milling Machine
Model
X6140
Table Size
1700mmx400mm
Spindle Taper
ISO50
Spindle Speed
30-1500/18steps
Spindle Motor Power
11kw
Delivery Time
2 Months
Warranty Time
12 Months
Voltage
380V
Max.Load
800kg
Color
Blue and White
Transport Package
Wooden Pallet
Specification
1700x400mm
Trademark
BETA
Origin
Shandong, China
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
256.00cm * 216.00cm * 177.00cm
Package Gross Weight
3850.000kg
Product Description
Horizontal universal knee type milling machine X6140 for metal processingStandard accessories:
Horizontal milling cutter arbor
Horizontal milling drawbar
ISO50 milling chuck
ISO50 milling arbor
Taper sleeve
Foundation bolts
Double head wrench
Single head spaner
Inner hexagon spanner
Optional accessories:
Sino 3-DRO
vertical milling head
vice 160mm
dividing head F11125A
slotting head
Product Parameters:
| Model | Unit | X6140 |
| Table size | mm | 1700x400 |
| No.of T-slots | 3 | |
| Width of T-slots | mm | 18 |
| Max. Rotary angle of worktable | ° | ±45° |
| Max.load | kg | 800 |
| Longitudinal travel(manual/auto) | mm | 900/800 |
| Cross travel(manual/auto) | mm | 315/300 |
| Vertical travel(manual/auto) | mm | 350/330 |
| Table feed range(X/Y/Z) | mm/min | 23.5-1180/23.5-1180/8-394 |
| Rapid feed speed | mm/min | 2300/2300/770 |
| Spindle taper | ISO50 | |
| Spindle speed range | r/mm | 30-1500 |
| Spindle speed step | steps | 18 (steps) |
| Distance between spindle axis table surface | mm | 30-380 |
| Power of spindle motor | kw | 11 |
| Overall dimension(LxWxH) | mm | 2556x2159x1770 |
| Net weight | kg | 3850 |
TENGZHOU BETA CO.,LTD. is a highly reputed professional Machine Tool manufacturer and exporter in CHINA. We focus on complete seals solution include seal making CNC machine, seal processing software, seal materials and cutting tools, the annual output quantity up to more than 1000 units.
Having focused on international market. We have placed the priority on both machines' quality and service. All machines will thoroughly follow every stage during manufacturing, assembling, final testing, packing and shipping, we promise that every provided machine will be strictly tested and be ready to operate before delivery.
