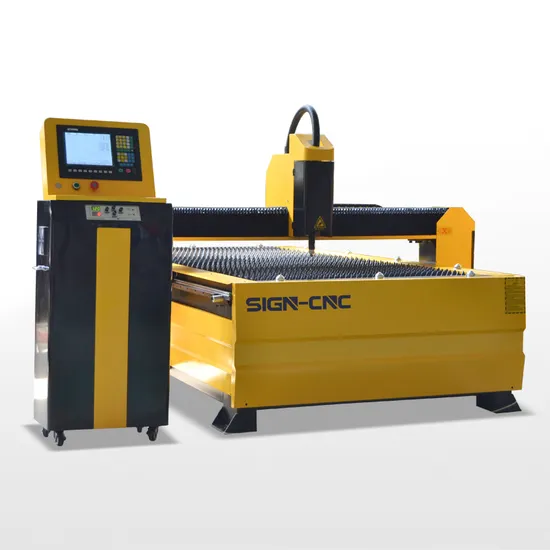

Metal Tube CNC Plasma Cutting Machine 1325/1530 Table CNC Plasma Cutter CNC Plasma Cutter 63A 100A 120A 160A 200A Steel Metal Cutting for Iron Carbon Steel

Product Description

CNC Plasma Cutting Machine SIGN CNC Plasma Cutter Metal Plasma Cut CNC
Product Description: A metal cutting machine, different model and also can customized according your required. For thick materials cut, and almost all metal can cut use plasma cutting machine. Famous plasma power, and all the parts is original Frame adopts full welded structure, solid and reasonable, the operation is simple, durable in use. The CNC system is high configuration. Automatic arc, stable performance, the success rate of 99% or more Plasma cutting machine Y axis adopts double moters with double drivers.
Machine configuration
* Gear and rack transmission and Famous brand Hiwin Square guide rails.
* Professional plasma cutting head
* Start/starfire control system
* Arc voltage Auto Height-adjusting Device auto arc-striking
* Leadshine stepper motor and driver or Japanese Servo motor and driver as option
* Huayuan (LGK) or Hypertherm (PowerMax) plasma cutting power supply
* Startcam or Fastcam software
* Exhaust fan with machine
* Heavy duty bed
* 380V working Voltage
Steel Metal Cutting Machine CNC Plasma Cutting Machine 1325
Option parts:
1. Rotary for tube metal cut
2. Flame cutting head for thick metal materials cut up to 150 or 200mm
Common models:

SIGN-1313 (1300*1300mm)	SIGN-1318 (1300*1800mm)	SIGN-1325 (1300*2500mm)
SIGN-1530 (1500*3000mm)	SIGN-1540 (1500*4000mm)	SIGN-2030 (2000*3000mm)
SIGN-2040 (2000*4000mm)	SIGN-2050 (2000*5000mm)	SIGN-2060 (2000*6000mm)

Technical parameters:

Name	Parameter
Cutting accuracy	±0.4mm
Reposition accuracy	±0.2mm
Working size	X=1500,Y=3000,Z=150mm, (can be customized)
Working table size	1500*3000mm
Feeding height	150mm
Max running speed	9m/min
X/Y/Z axis transmission	X/Y Axis Gear and rack ,Z Axis Ball screw
Plasma power	Chinese 60A(optional:100A 120A 160A 200A)
	America 45A (optional:65A 85A 105A 125A 200A)
Cutting thickness	0-40mm (dependent on different plasma power ability)
Auto height-adjusting device	Arc voltage controller
Flame cutting head	with or without
Driver motor	Stepper motor (Servo motor optional)
Working voltage	AC380v/50Hz
Control system	STARFIRE/START control system
Gross weight	1200kg
Optional parts	Rotary and flame cutting head
Remark: All machine models can be customized according to clients' requirement.

Option parts	Consumables
Air compressor (You can buy it from us or buy it in your local)	Protective casing
Flame cutting head (Can cutting thickness up to 150-200mm)	Electrode
Rotary system for metal pipe cutting	Nozzle

Applied industry:
Case shell of mechanical and electrical products processing, advertising sign ages, process decoration, smith gardens, automobile, shipbuilding, electrical accessories cutting and processing, welding industry etc.
Material:
Iron plate, different steel like stainless steel and carbon steel and so on, titanium plate, galvanized sheet, high speed steel, aluminum etc.
