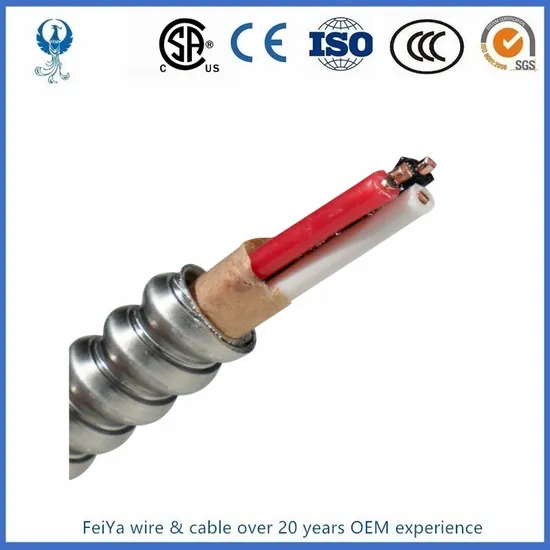

AC90 -40c 600V Copper Conductor XLPE Insulation 14 to 2 AWG Aluminum Interlock Armoured CSA Cable

Product Description

Product Description Type AC90 600V -40C Interlocked Aluminum Armoured Electric Cable
Rated at 90°C wet or dry Excellent crush resistance Provides long service life Cost effective alternative to installations in conduit Meets cold bend and impact tests at (-40°C)Application:For concealed wiring in dry or wet locations For exposed wiring in dry or wet locations
For exposed and wiring in dry, locations where subjected to corrosive action if suitable for corrosive conditions encountered
For exposed wiring where subjected to the weather
For use in ventilated, Non-ventilated and ladder-type cable trays in dry or wet locations
For direct earth burial (with protection as required by inspection authority)
For service entrance above or below ground

AWG size		Isulation Thickness	Approximate Diameter	Net Weight
No./size	bare bonding conductor size	mm	mm	KG/KM
4/14	14	0.76	13.3	203
3/14	14	0.76	12.5	170
2/14	14	0.76	12.0	145
4/12	14	0.76	14.3	260
3/12	14	0.76	13.4	215
2/12	14	0.76	12.8	176
4/10	12	0.76	15.6	355
3/10	12	0.76	14.6	290
2/10	12	0.76	13.9	233
3/8	10	1.14	19.1	505
3/6	8	1.14	21.3	705
3/3	6	1.14	25.4	1195
3/2	6	1.14	26.9	1410

Armor	interlocked aluminum armor
Groud (Bonding core) conductor	Bare Copper Bonding conductor
Conductor	copper conductor
Insulation	Cross-Linked Polyethylene- XLPE
Temperature range	- 40°C to +90°C
compliances	CSA Spec. C22.2, No. 51 - Armoured Cables CSA -40°C Cold Temperature Rating
